XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Seat Diagram

Name: XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Seat Diagram
SKU: xg_135_hd_2t0410373_f10_seat-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Seat Diagram

Description

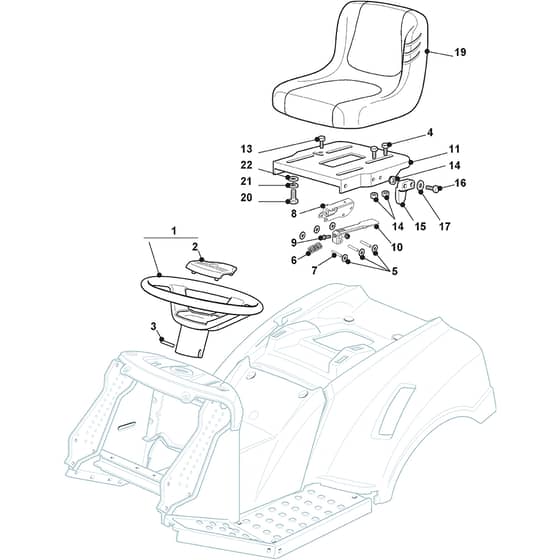

Castel Garden XG 135 HD Parts Diagram

Product Name - XG 135 HD

Model Year - 2010-2015

Model Type - NJX 92 Hydro

Art.N - 2T0410373/F10

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel From S.N 328614	£54.61 £45.51
2	MO325580500/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin To 31-8-2016	£1.82 £1.52
3	MO112620250/0 Available to backorder	Pin From 01-9-2016	£1.55 £1.29
5	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
6	MO125430285/0 Available to backorder	Spring	£6.90 £5.75
7	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
8	MO325774575/0 Available to backorder	Fulcrum Clamp	£9.00 £7.50
10	MO382318315/0 Available to backorder	Lever From S.N 419123	£10.56 £8.80
10	MO325318327/0 Available to backorder	Lever To S.N 419122	£9.35 £7.79
11	MO325547033/2 Available to backorder	Seat Plate	£39.42 £32.85
13	MO112789000/0 Available to backorder	Screw To 31-8-2017	£1.55 £1.29
13	MO112735661/0 Available to backorder	Screw From 01-9-2017	£1.55 £1.29
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125722463/0 Available to backorder	Seat	£204.12 £170.10
20	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
