XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Carburettor Diagram

Description

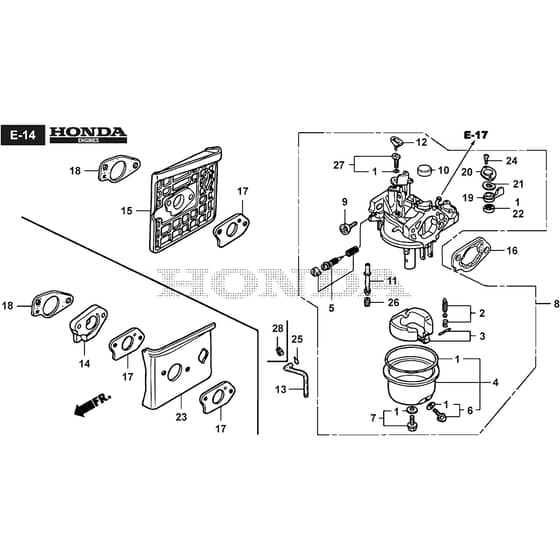

Castel Garden XG 135 HD Parts Diagram

Product Name - XG 135 HD

Model Year - 2010-2015

Model Type - NJX 92 Hydro

Art.N - 2T0410373/F10

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-ZE2-015 Available to backorder	Gasket Set	£22.32 £18.60
2	HP16011-ZA0-931 Available to backorder	Valve Set. Float	£46.21 £38.51
3	HP16013-Z1C-003 In stock	Float Set	£34.12 £28.43
4	HP16015-ZE8-005 Available to backorder	Chamber Set. Float	£60.24 £50.20

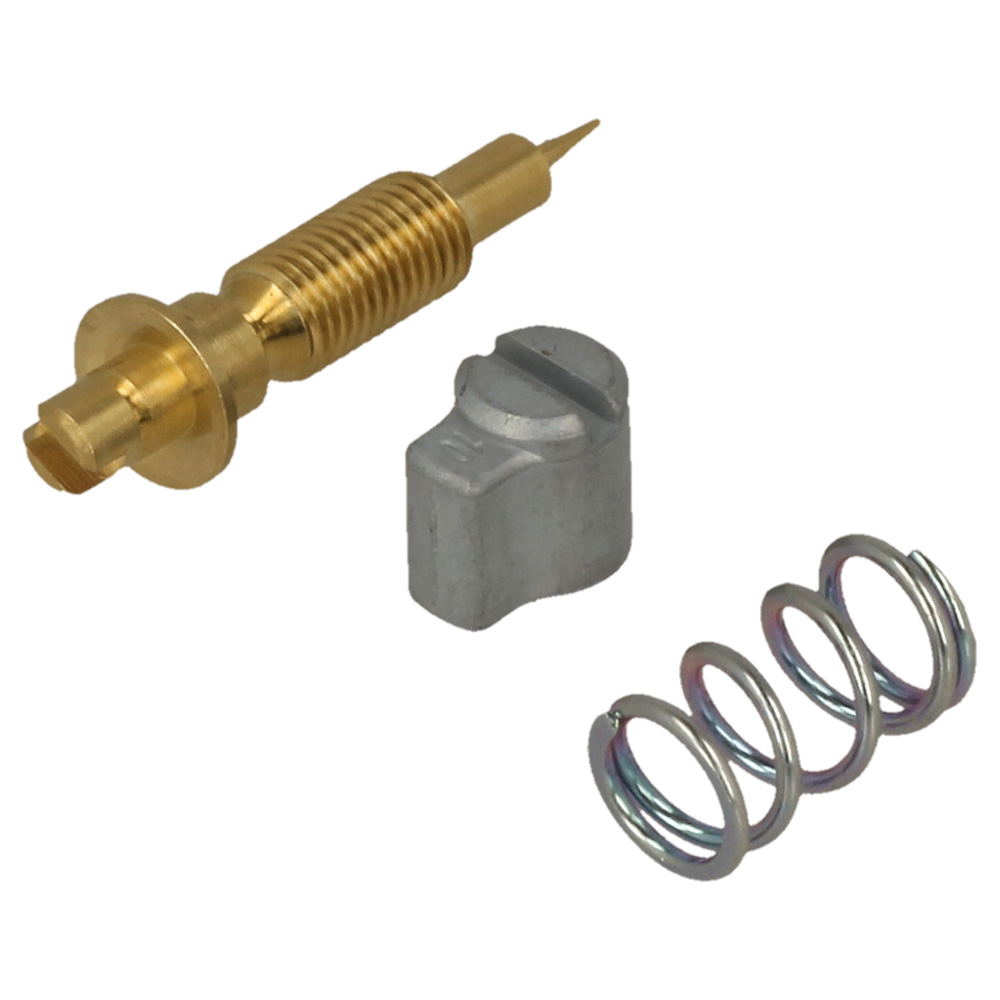

5	HP16016-Z1E-V21 Out of stock	Screw Set	£6.83 £5.69
6	HP16024-ZE1-811 Available to backorder	Screw Set. Drain	£13.56 £11.30
7	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
8	HP16100-Z1E-V45 Available to backorder	Carburetor Assy. (Be86R D)	£185.08 £154.23
9	HP16124-ZE0-005 Available to backorder	Screw. Throttle Stop	£12.92 £10.77
12	HP16172-ZE3-W10 Available to backorder	Collar. Setting	£8.11 £6.76
16	HP16220-ZA0-702 Available to backorder	Spacer Comp. Carburetor	£18.08 £15.07
17	HP16221-ZF6-800 Available to backorder	Packing. Carburetor	£3.92 £3.27
18	HP16223-ZE9-800 Available to backorder	Packing. Insulator	£3.56 £2.97
20	HP16954-ZE1-812 Available to backorder	Plate. Lever Setting	£7.36 £6.13
21	HP16956-ZE1-811 Available to backorder	Spring. Cock Lever	£4.43 £3.69
22	HP16957-ZE1-812 Available to backorder	Packing. Fuel Cock	£4.46 £3.72
24	HP93500-03006-1H Available to backorder	Screw. Pan. 3X6	£1.34 £1.12
25	HP95002-02080 Available to backorder	Clip. Tube (B8)	£1.08 £0.90
26	HP99101-ZH8-0920 Available to backorder	Jet. Main. #92	£11.58 £9.65
26	HP99101-ZH8-0880 Available to backorder	Jet. Main. #88	£11.58 £9.65
26	HP99101-ZH8-0950 Available to backorder	Jet. Main. #95	£11.58 £9.65
26	HP99101-ZH8-0900 Available to backorder	Jet. Main. #90	£11.58 £9.65
27	HP99204-ZE2-0400 Available to backorder	Jet Set. Pilot. #40	£25.39 £21.16
28	HP95002-4080008 Available to backorder	Clamp. Tube (D8)	£1.60 £1.33
