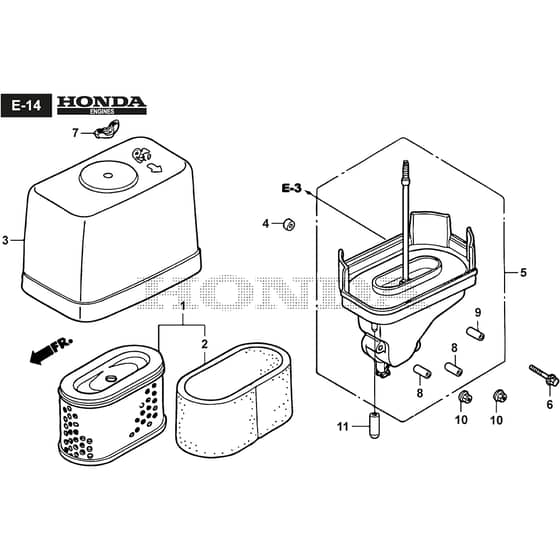

XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Air Filter Diagram

Name: XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Air Filter Diagram
SKU: xg_135_hd_2t0410373_f10_air_filter-group
Price: 2.81 GBP
Availability: InStock

Part No. xg_135_hd_2t0410373_f10_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XG 135 HD - 2010-2015 - 2T0410373/F10 - Castel Garden Ride On Mower Air Filter Diagram

Description

Castel Garden XG 135 HD Parts Diagram

Product Name - XG 135 HD

Model Year - 2010-2015

Model Type - NJX 92 Hydro

Art.N - 2T0410373/F10

Engine Model - Honda GXV 390

	Part No.	Details
1	HP17210-Z1E-801 Available to backorder	Element Comp. Air Cleaner	£39.56 £32.97
3	HP17231-ZF5-V00 Available to backorder	Cover. Air Cleaner	£72.24 £60.20
5	HP17410-Z5V-010 Available to backorder	Elbow Comp. Air Cleaner	£51.30 £42.75
7	HP90325-044-000 Available to backorder	Nut. Tool Box Setting	£5.05 £4.21
10	HP94050-06000 In stock	Nut. Flange. 6mm	£3.37 £2.81
11	HP90634-ZL8-H00 Available to backorder	Cap. Sealing	£5.11 £4.26
