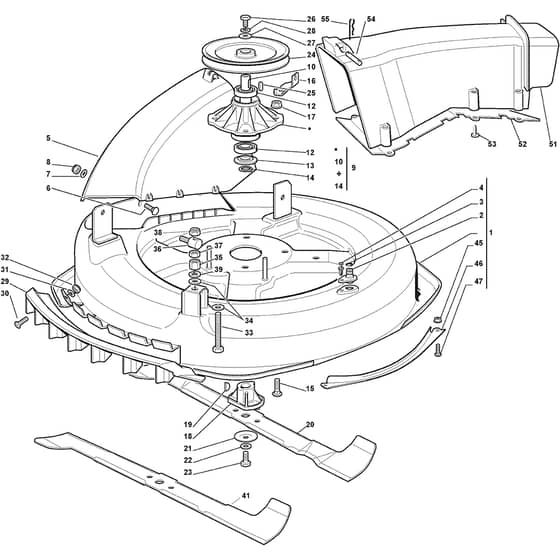

XF 140 HD - 2013-2021 - 2T0220273/13 - Castel Garden Ride On Mower Cutting Deck Diagram

Name: XF 140 HD - 2013-2021 - 2T0220273/13 - Castel Garden Ride On Mower Cutting Deck Diagram
SKU: xf_140_hd_2t0220273_13_cutting_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XF 140 HD - 2013-2021 - 2T0220273/13 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

Castel Garden XF 140 HD Parts Diagram

Product Name - XF 140 HD

Model Year - 2013-2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0220273/13

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384564111/0 Available to backorder	Cutting Plate Black	£457.51 £381.26
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.49 £1.24
5	MO327045000/1 Available to backorder	Conveyor Inlet	£18.86 £15.72
7	MO112523040/0 In stock	Washer	£1.49 £1.24
9	MO384207250/0 Available to backorder	Flange Assy	£104.18 £86.82
10	MO127023000/0 Available to backorder	Shaft	£32.51 £27.09
12	MO119216047/0 In stock	Bearing	£15.78 £13.15
13	MO325160501/1 Available to backorder	Dust Cover Disc From S.N 19CA3RON000144	£1.49 £1.24
14	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
15	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
16	MO327787067/0 Available to backorder	Support Not for B&S Engine	£2.68 £2.23
17	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
18	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO184109503/0 Available to backorder	Blade Winged. Mulching	£55.21 £46.01
20	MO1134-9219-01 Available to backorder	Blade Winged. Mulching Stiga Packed into 184109503.0	£61.96 £51.63
21	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
23	MO112735694/0 In stock	Screw	£1.97 £1.64
24	MO127604009/0 Available to backorder	Pulley	£57.14 £47.62
25	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
26	MO112793102/0 In stock	Screw	£1.55 £1.29
27	MO125670007/0 In stock	Washer	£1.97 £1.64
28	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
29	MO127488000/0 Available to backorder	Air Intake Grill	£10.14 £8.45
30	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
31	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
33	MO112794970/0 Available to backorder	Screw	£3.38 £2.82
34	MO112523080/0 In stock	Washer	£1.55 £1.29
35	MO112154250/0 Available to backorder	Nut	£4.78 £3.98
36	MO125510007/2 Available to backorder	Pin	£5.64 £4.70
37	MO112295200/0 In stock	Nut	£1.40 £1.17
38	MO112156602/0 In stock	Nut	£1.40 £1.17
39	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
41	MO184109500/0 Available to backorder	Winged Blade	£53.87 £44.89
45	MO112154510/0 In stock	Nut	£1.55 £1.29
46	MO327543009/0 Available to backorder	Deck Profile.Black	£16.46 £13.72
47	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
51	MO127107501/0 Available to backorder	Conveyor	£54.90 £45.75
52	MO327140051/1 Available to backorder	Deflector	£12.82 £10.68
53	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
54	MO127510097/1 Available to backorder	Pin	£2.81 £2.34
55	MO124487997/0 Available to backorder	Spring Clip D.1.8	£1.55 £1.29
