XF 140 HD - 2010-2013 - 2T0220273/10 - Castel Garden Ride On Mower Optionals Diagram

Name: XF 140 HD - 2010-2013 - 2T0220273/10 - Castel Garden Ride On Mower Optionals Diagram
SKU: xf_140_hd_2t0220273_10_optionals-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XF 140 HD - 2010-2013 - 2T0220273/10 - Castel Garden Ride On Mower Optionals Diagram

Description

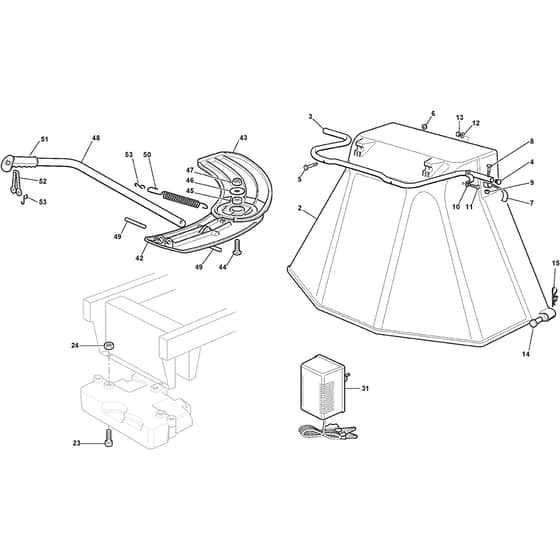

Castel Garden XF 140 HD Parts Diagram

Product Name - XF 140 HD

Model Year - 2010-2013

Model Type - F 72 Hydro

Art.N - 2T0220273/10

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO484598062/0 Available to backorder	Ejection Guard	£84.47 £70.39
3	MO327869053/0 Available to backorder	Support	£37.43 £31.19
4	MO118566113/0 Available to backorder	Cap	£1.55 £1.29
5	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
7	MO325547053/0 Available to backorder	Plate	£14.82 £12.35
8	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
11	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523020/0 In stock	Washer	£1.55 £1.29
13	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
14	MO125510022/1 Available to backorder	Pin From 01-9-2012	£3.10 £2.58
15	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
31	MO1134-9250-01 In stock	Battery Charger 12V 1A - Ce Plugg EU plug	£60.06 £50.05
42	MO327140055/0 Available to backorder	Deflector. Rear	£7.74 £6.45
43	MO327140054/0 Available to backorder	Deflector. Front	£7.74 £6.45
44	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
45	MO127047013/1 Available to backorder	Bushing From 01-9-2013	£1.82 £1.52
46	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO327394003/2 Available to backorder	Handle From 01-9-2011	£66.02 £55.02
49	MO127510116/0 Available to backorder	Pin	£8.23 £6.86
50	MO125430229/1 Available to backorder	Brake Spring	£8.38 £6.98
51	MO325280000/1 Available to backorder	Handgrip	£3.10 £2.58
52	MO125840011/1 In stock	Tie Rod From 01-9-2011	£7.19 £5.99
53	MO125253004/0 Available to backorder	Fixing Hook	£1.55 £1.29
