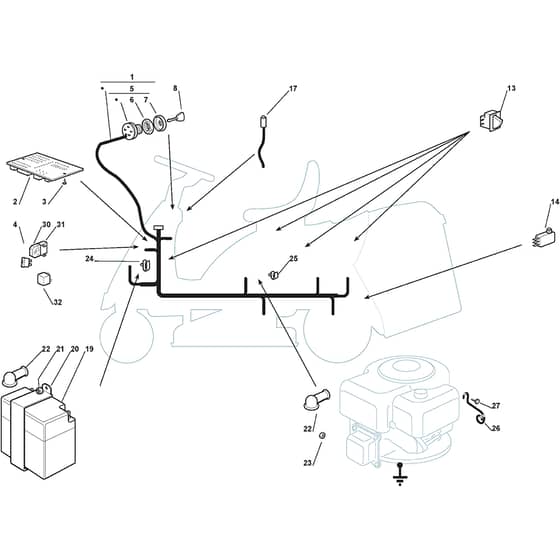

XF 140 HD - 2010-2013 - 2T0220273/10 - Castel Garden Ride On Mower Electric Parts Diagram

Description

Castel Garden XF 140 HD Parts Diagram

Product Name - XF 140 HD

Model Year - 2010-2013

Model Type - F 72 Hydro

Art.N - 2T0220273/10

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184040126/2 Available to backorder	Cables Ass.Y From 01-9-2007	£209.94 £174.95
2	MO125722415/1 Available to backorder	Electronic Card	£117.41 £97.84
3	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
4	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
4	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
5	MO118450065/1 Available to backorder	Starting Switch	£36.56 £30.47
6	MO118400861/0 Available to backorder	Screwed Ring	£6.05 £5.04
7	MO118565351/0 Available to backorder	Screwed Ring Protection	£7.03 £5.86
8	MO118210016/1 Available to backorder	Starting Key	£12.82 £10.68
13	MO119410622/1 In stock	Microswitch	£6.62 £5.52
14	MO119410605/1 In stock	Microswitch	£39.42 £32.85
17	MO125065014/1 Available to backorder	Card Allarm Signal Cable	£12.10 £10.08
19	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
20	MO327772099/1 Available to backorder	Clamp	£5.64 £4.70
21	MO112155000/0 In stock	Nut	£1.55 £1.29
22	MO118564861/2 Available to backorder	Protection	£6.76 £5.63
23	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
24	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
25	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
26	MO127430561/0 Available to backorder	Spring	£2.40 £2.00
27	MO112735122/1 Available to backorder	Screw	£1.55 £1.29
30	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
31	MO133500007/0 Available to backorder	Fuse Holder	£7.31 £6.09
