XF 140 - 2019-2020 - 2T0120273/C19 - Castel Garden Ride On Mower Transmission Diagram

Name: XF 140 - 2019-2020 - 2T0120273/C19 - Castel Garden Ride On Mower Transmission Diagram
SKU: xf_140_2t0120273_c19_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. xf_140_2t0120273_c19_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XF 140 - 2019-2020 - 2T0120273/C19 - Castel Garden Ride On Mower Transmission Diagram

Description

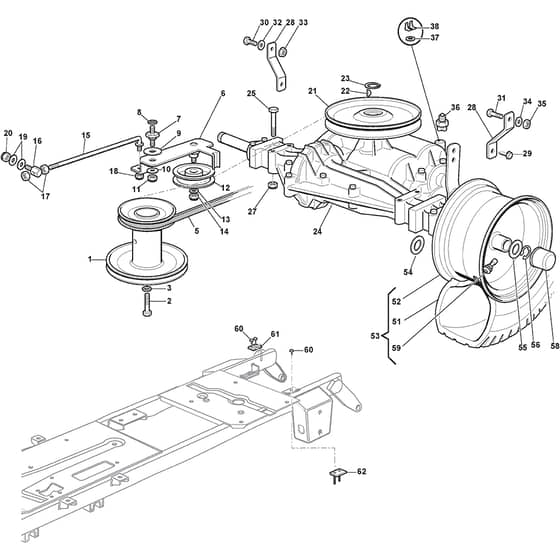

Castel Garden XF 140 Parts Diagram

Product Name - XF 140

Model Year - 2019-2020

Model Type - F 72 F.L.

Art.N - 2T0120273/C19

Engine Model - Castelgarden 7050

	Part No.	Details
1	MO127604003/1 Available to backorder	Pulley	£82.06 £68.38
2	MO112737310/0 Available to backorder	Screw	£2.94 £2.45
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
5	MO135061400/0 Available to backorder	Trapezoidal Belt	£33.66 £28.05
6	MO384317055/1 Available to backorder	Lever	£11.95 £9.96
7	MO127510096/0 Available to backorder	Fulcrum Pin	£4.78 £3.98
8	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
9	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
11	MO112155010/0 In stock	Nut	£2.11 £1.76
12	MO125601554/0 In stock	Pulley	£25.66 £21.38
15	MO127034054/0 Available to backorder	Tie Rod	£10.56 £8.80
16	MO125510040/2 Available to backorder	Pin To S.N 19LA3RON002973	£5.76 £4.80
16	MO125510168/0 Available to backorder	Pin From S.N 19DA3RON003468	£4.50 £3.75
17	MO112293200/0 In stock	Nut	£1.55 £1.29
19	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
21	MO182601509/0 Available to backorder	Pulley	£76.72 £63.93
22	MO112139430/0 In stock	Key	£1.97 £1.64
23	MO112608950/0 Available to backorder	Seeger	£1.63 £1.36
24	MO118400915/3 Available to backorder	Mechanical Transaxle - Peerless (Mst 205-541H)	£624.46 £520.38
25	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
27	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
28	MO327772067/0 Available to backorder	Clamp	£2.94 £2.45
29	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
30	MO112793102/0 In stock	Screw	£1.55 £1.29
31	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
32	MO112523060/0 In stock	Washer	£1.55 £1.29
33	MO112293201/0 In stock	Nut	£1.70 £1.42
34	MO112521350/0 In stock	Washer	£1.55 £1.29
35	MO112155000/0 In stock	Nut	£1.55 £1.29
36	MO119410608/1 Available to backorder	Neutral Switch (Mech.)	£61.74 £51.45
37	MO112540221/0 Available to backorder	Washer	£4.64 £3.87
38	MO133800001/0 Available to backorder	Faston Terminal	£1.39 £1.16
51	MO127590051/0 In stock	Tyre 15X6.00-6 P512 (Wanda)	£51.97 £43.31
52	MO184044019/0 Available to backorder	Rear Wheel Rimm Dark Grey Rimm	£54.37 £45.31
52	MO184044013/0 Available to backorder	Rear Wheel Rimm Light Grey Rimm	£54.37 £45.31
53	MO384680079/0 Available to backorder	Rear Wheel Assy Dark Grey Rimm	£101.34 £84.45
54	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
55	MO125670005/2 In stock	Washer	£4.08 £3.40
56	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
58	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
59	MO125950000/0 In stock	Valve	£5.34 £4.45
60	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
61	MO127294002/0 Available to backorder	Belt Guide	£6.19 £5.16
62	MO184250053/0 Available to backorder	Belt Guide	£8.38 £6.98
