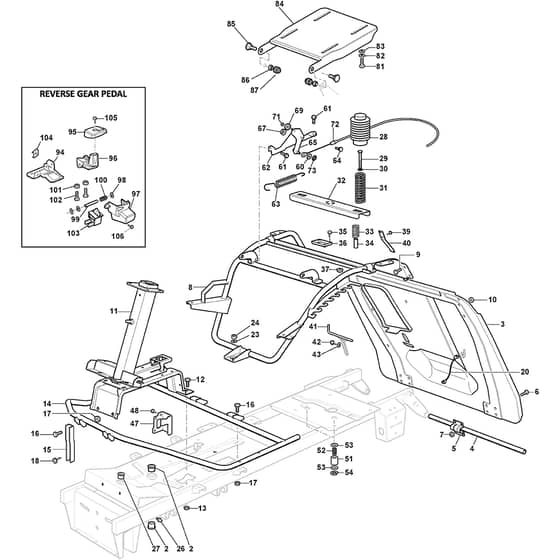

XF 140 - 2019-2020 - 2T0120273/C19 - Castel Garden Ride On Mower Frame Diagram

Description

Castel Garden XF 140 Parts Diagram

Product Name - XF 140

Model Year - 2019-2020

Model Type - F 72 F.L.

Art.N - 2T0120273/C19

Engine Model - Castelgarden 7050

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
3	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
4	MO127037000/1 Available to backorder	Rear Plate Fulcrum	£8.87 £7.39
5	MO325547012/1 Available to backorder	Plate	£4.22 £3.52
6	MO112791213/1 In stock	Screw	£1.55 £1.29
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO384801149/1 Available to backorder	Seat Frame	£120.95 £100.79
11	MO382785243/0 Available to backorder	Steering Column Support	£88.68 £73.90
14	MO384801107/3 Available to backorder	Footboard Support	£50.68 £42.23
15	MO327787025/0 Available to backorder	Support	£3.10 £2.58
16	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO384040300/0 Available to backorder	Rear Plate	£3.38 £2.82
23	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
27	MO125034001/0 Available to backorder	Brass	£3.79 £3.16
28	MO325122003/0 Available to backorder	Hood	£9.71 £8.09
29	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
30	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
31	MO127430602/1 Available to backorder	Spring	£6.47 £5.39
32	MO327543047/0 Available to backorder	Plate	£9.64 £8.03
33	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
34	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
35	MO112728686/0 In stock	Screw	£1.55 £1.29
36	MO325785379/1 Available to backorder	Support	£1.55 £1.29
37	MO112293201/0 In stock	Nut	£1.69 £1.41
39	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
40	MO127430600/0 Available to backorder	Spring	£2.81 £2.34
41	MO127294001/0 Available to backorder	Rear Conveyor Guide	£20.40 £17.00
42	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523040/0 In stock	Washer	£1.49 £1.24
47	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
48	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
51	MO127047012/0 Available to backorder	Fast Release Bush Rider	£13.09 £10.91
106	MO112789008/0 Available to backorder	Hex-Head Screw M5 X 20	£1.82 £1.52
