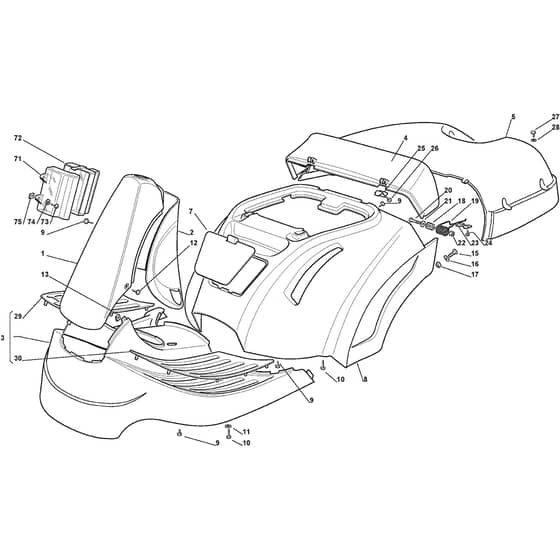

XF 140 - 2011-2012 - 2T0110273/10 - Castel Garden Ride On Mower Body Diagram

Description

Castel Garden XF 140 Parts Diagram

Product Name - XF 140

Model Year - 2011-2012

Model Type - F 72

Art.N - 2T0110273/10

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
2	MO327600134/0 Available to backorder	Rear Steering Column Protection	£23.11 £19.26
3	MO327110410/2 Available to backorder	Footboard Cover Grey	£132.06 £110.05
4	MO327110302/3 Available to backorder	Fixed Grass-Catcher Cover. Red From 01-9-2003	£43.33 £36.11
5	MO327110303/2 Available to backorder	Mobile Grass-Catcher Cover. Red From 01-9-2003	£76.02 £63.35
7	MO327109501/2 In stock	Front Cover. Red From 01-9-2003	£11.82 £9.85
9	MO112735406/0 Available to backorder	Screw From 01-9-2014	£1.55 £1.29
9	MO112735402/0 Available to backorder	Screw To 31-8-2014	£1.55 £1.29
10	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
11	MO112523040/0 In stock	Washer	£1.49 £1.24
12	MO112727790/0 Available to backorder	Screw To 31-8-2014	£1.66 £1.38
12	MO112735598/0 Available to backorder	Screw From 01-9-2014	£1.78 £1.48
13	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
15	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO127047003/0 Available to backorder	Bushing	£1.69 £1.41
19	MO127430551/1 Available to backorder	Spring	£2.81 £2.34
20	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
75	MO112437502/0 Available to backorder	Plate	£1.55 £1.29
