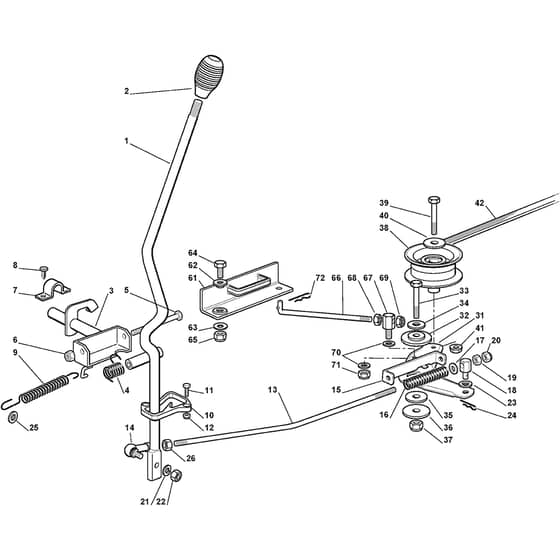

XF 140 - 2011-2012 - 2T0110273/10 - Castel Garden Ride On Mower Blade Engagement Diagram

Name: XF 140 - 2011-2012 - 2T0110273/10 - Castel Garden Ride On Mower Blade Engagement Diagram
SKU: xf_140_2t0110273_10_blade_engagement-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XF 140 - 2011-2012 - 2T0110273/10 - Castel Garden Ride On Mower Blade Engagement Diagram

Description

Castel Garden XF 140 Parts Diagram

Product Name - XF 140

Model Year - 2011-2012

Model Type - F 72

Art.N - 2T0110273/10

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184317069/1 Available to backorder	Lever	£34.28 £28.57
2	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
3	MO384001007/0 Available to backorder	Blade Eng.Axle Control Ass.Y	£14.92 £12.43
4	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
5	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
7	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
8	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
9	MO127430571/0 Available to backorder	Spring	£4.66 £3.88
10	MO127487000/0 Available to backorder	Shoe	£2.95 £2.46
11	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO127034078/0 Available to backorder	Rod	£8.74 £7.28
14	MO122746610/0 Available to backorder	Joint	£21.12 £17.60
15	MO327772143/0 In stock	Clamp	£7.10 £5.92
16	MO127430576/0 In stock	Spring	£9.85 £8.21
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
18	MO127510113/0 Available to backorder	Pin	£8.74 £7.28
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
23	MO325670008/1 In stock	Washer	£1.55 £1.29
25	MO125670006/0 Available to backorder	Washer	£1.55 £1.29
31	MO384317083/0 Available to backorder	Lever	£19.30 £16.08
32	MO127047000/0 Available to backorder	Bushing	£5.06 £4.22
33	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
36	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
38	MO127604008/0 Available to backorder	Pulley	£93.61 £78.01
39	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
40	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
41	MO112293201/0 In stock	Nut	£1.69 £1.41
42	MO135061423/0G In stock	Belt	£48.48 £40.40
61	MO384220501/0 Available to backorder	Blade Brake	£9.72 £8.10
62	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
63	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
64	MO112793102/0 In stock	Screw	£1.55 £1.29
65	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
66	MO127034077/1 Available to backorder	Rod	£13.09 £10.91
67	MO125510040/2 Available to backorder	Pin	£5.76 £4.80
68	MO112293200/0 In stock	Nut	£1.55 £1.29
70	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
71	MO112155000/0 In stock	Nut	£1.55 £1.29
72	MO124487997/0 Available to backorder	Spring Clip D.1.8	£1.55 £1.29
