XF 135 HD - 2022-2025 - 2T0210473/C22 - Castel Garden Ride On Mower Gearbox Controls Diagram

Name: XF 135 HD - 2022-2025 - 2T0210473/C22 - Castel Garden Ride On Mower Gearbox Controls Diagram
SKU: xf_135_hd_2t0210473_c22_gearbox_controls-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

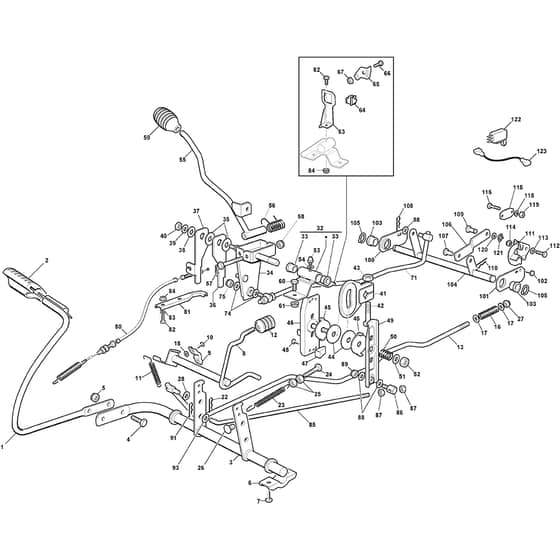

XF 135 HD - 2022-2025 - 2T0210473/C22 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

Castel Garden XF 135 HD Parts Diagram

Product Name - XF 135 HD

Model Year - 2022-2025

Model Type - F 72 Hydro F.L.

Art.N - 2T0210473/C22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Available to backorder	Pedal	£23.65 £19.71
2	MO125110267/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO384001015/1 Available to backorder	Axle	£46.46 £38.72
4	MO112793301/0 In stock	Screw	£1.55 £1.29
6	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
7	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
8	MO384001011/3 Available to backorder	Axle	£11.18 £9.32
9	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
10	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
12	MO127395050/1 Available to backorder	Knob	£2.95 £2.46
13	MO384002088/0 Available to backorder	Rod	£43.64 £36.37
16	MO127430588/0 Available to backorder	Spring	£7.10 £5.92
17	MO112521360/0 In stock	Washer	£1.55 £1.29
18	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
23	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
24	MO122943005/0 Available to backorder	Screw	£2.53 £2.11
26	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
27	MO112156602/0 In stock	Nut	£1.40 £1.17
32	MO384773568/2 Available to backorder	Bracket	£39.42 £32.85
33	MO127045080/0 Available to backorder	Bushing	£5.21 £4.34
34	MO384773561/1 Available to backorder	Control Lever Bracket	£43.49 £36.24
35	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
36	MO327772101/0 Available to backorder	Clamp	£2.40 £2.00
37	MO327772103/0 Available to backorder	Clamp	£2.12 £1.77
38	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
39	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
41	MO327734055/0 Available to backorder	Sector	£2.95 £2.46
42	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
44	MO127158000/0 Available to backorder	Plate	£20.96 £17.47
45	MO327670053/0 Available to backorder	Washer	£1.55 £1.29
46	MO384773565/0 Available to backorder	Clamp	£16.82 £14.02
47	MO127063020/0 Available to backorder	Cam	£1.55 £1.29
48	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
49	MO384773563/0 Available to backorder	Lever	£6.34 £5.28
50	MO127430560/0 Available to backorder	Clutch Spring	£15.28 £12.73
51	MO325670008/1 In stock	Washer	£1.55 £1.29
52	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
53	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
55	MO384317101/0 Available to backorder	Lever. Speed Drive Control	£29.28 £24.40
56	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
57	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
59	MO182394508/0 Available to backorder	Knob	£8.38 £6.98
63	MO327787111/0 Available to backorder	Micro Switch Bracket	£1.69 £1.41
64	MO119410623/0 Available to backorder	Microswitch	£7.62 £6.35
65	MO327063025/0 Available to backorder	Micro Switch Bracket	£1.69 £1.41
66	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
67	MO112293201/0 In stock	Nut	£1.69 £1.41
71	MO384002092/0 Available to backorder	Rod	£35.20 £29.33
80	MO184207101/1 Available to backorder	Clutch Lever Wire	£33.79 £28.16
81	MO327772105/0 Available to backorder	Stirrup	£1.97 £1.64
82	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
83	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
84	MO112292102/0 In stock	Nut	£1.69 £1.41
85	MO127034074/0 Available to backorder	Rod To S.N 20BA3RON000934	£20.28 £16.90
85	MO127034074/1 Available to backorder	Tie Rod From S.N 20BA3RON005328	£17.74 £14.78
86	MO125510040/2 Available to backorder	Pin To S.N 19LA3RON002973	£5.76 £4.80
86	MO125510168/0 Available to backorder	Pin From S.N 19DA3RON003468	£4.50 £3.75
87	MO112293200/0 In stock	Nut	£1.55 £1.29
89	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
93	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
100	MO327546059/0 Available to backorder	Plate	£4.93 £4.11
101	MO327546061/0 Available to backorder	Plate	£4.93 £4.11
102	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
103	MO125040614/0 Available to backorder	Bushing	£1.55 £1.29
104	MO384001029/0 Available to backorder	Axle	£21.47 £17.89
105	MO112608900/0 Available to backorder	Seeger	£1.33 £1.11
106	MO327034089/0 Available to backorder	Rod	£12.67 £10.56
107	MO127510111/0 Available to backorder	Pin	£2.53 £2.11
109	MO125510085/1 Available to backorder	Pin	£1.55 £1.29
110	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
111	MO327063023/0 Available to backorder	Cam	£4.50 £3.75
112	MO112793102/0 In stock	Screw	£1.55 £1.29
114	MO112155000/0 In stock	Nut	£1.55 £1.29
115	MO327546019/0 Available to backorder	Neutral Switch Fixing Plate	£1.40 £1.17
116	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
118	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
119	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
120	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
121	MO112436050/0 In stock	Plate	£1.82 £1.52
122	MO119410609/1LC In stock	Microswitch To S.N 24KA3RON001972	£27.17 £22.64
122	MO119410639/0 Available to backorder	Microswitch From S.N 24KA3RON001973	£7.20 £6.00
123	MO125065025/0 Available to backorder	Adapter Cable	£8.59 £7.16
