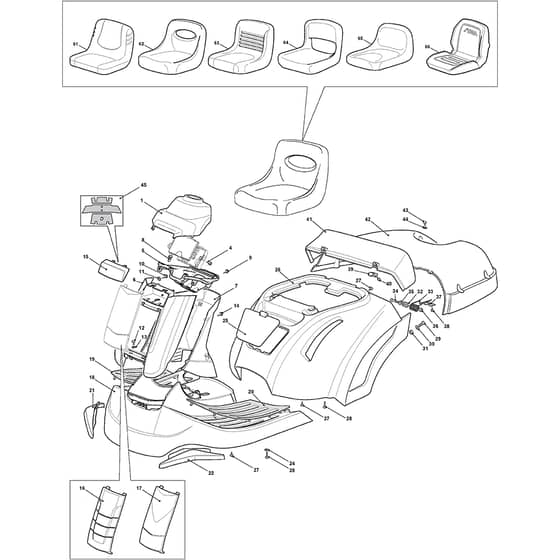

Castel Garden XF 135 HD Parts Diagram

Product Name - XF 135 HD

Model Year - 2013

Model Type - F 72 Hydro F.L.

Art.N - 2T0210373/13

Engine Model - Honda GXV 390

	Part No.	Details
1	MO327109535/0 Available to backorder	Dashboard Cover Grey	£35.20 £29.33
5	MO327787084/0 Available to backorder	Lights And Card Support	£18.94 £15.78
6	MO327787083/1 Available to backorder	Front Dashboard Support. Red Light Red From S.N FC141762	£40.82 £34.02
7	MO327787082/1 Available to backorder	Rear Dashboard Support. Red Light Red From S.N FC141762	£43.63 £36.36
8	MO125943010/0 In stock	Screw	£1.97 £1.64
14	MO112735402/0 In stock	Screw	£1.55 £1.29
15	MO325410913/0 Available to backorder	Grill	£11.26 £9.38
17	MO327110477/0 Available to backorder	Front Cover. Grey	£17.87 £14.89
18	MO327110410/2 Available to backorder	Footboard Cover. Grey From S.N FC127462	£155.60 £129.67
19	MO127110304/0 Available to backorder	Right Footboard Cover	£9.86 £8.22
20	MO127110305/1 Available to backorder	Left Footboard Cover From S.N FC127462	£9.86 £8.22
21	MO327110501/0 Available to backorder	Black Wheels Cover. Right	£7.39 £6.16
22	MO327110502/0 Available to backorder	Black Wheels Cover. Left	£8.59 £7.16
25	MO327109501/2 In stock	Front Cover. Red Light Red From S.N FC141762	£11.82 £9.85
26	MO384110170/0 Available to backorder	Red Wheels Cover Light Red From S.N FC141762	£211.15 £175.96
28	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
29	MO112791213/1 In stock	Screw	£1.55 £1.29
30	MO112523040/0 In stock	Washer	£1.55 £1.29
31	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO127047003/0 Available to backorder	Bushing	£1.70 £1.42
33	MO127430551/1 Available to backorder	Spring	£2.82 £2.35
34	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
35	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
36	MO112155000/0 In stock	Nut	£1.55 £1.29
37	MO327546001/0 Available to backorder	Plate	£1.39 £1.16
39	MO327546003/0 Available to backorder	Plate	£1.63 £1.36
40	MO112735406/0 Available to backorder	Screw	£1.63 £1.36
41	MO327110302/3 In stock	Fixed Grass-Catcher Cover. Red Light Red From S.N FC141762	£45.04 £37.53
42	MO327110303/2 In stock	Mobile Grass-Catcher Cover. Red Light Red From S.N FC141291	£76.02 £63.35
43	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
44	MO112523020/0 In stock	Washer	£1.55 £1.29
45	MO114366202/0 Available to backorder	Light Reflector Label	£4.24 £3.53
61	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
