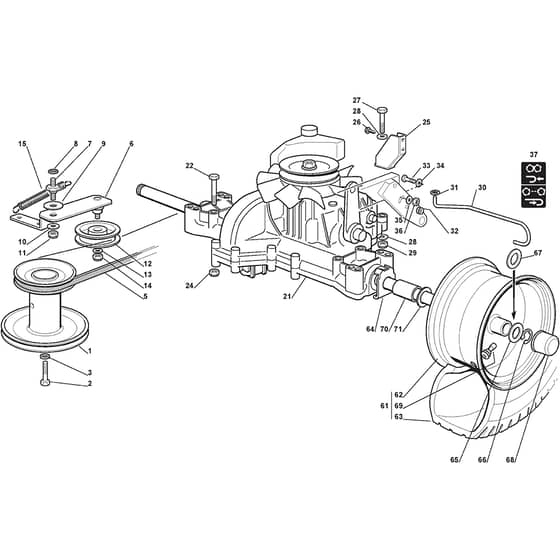

Castel Garden XF 135 HD Parts Diagram

Product Name - XF 135 HD

Model Year - 2011-2012

Model Type - F 72 Hydro

Art.N - 2T0210373/10

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604005/0 Available to backorder	Pulley	£92.20 £76.83
2	MO112737310/0 Available to backorder	Screw	£2.95 £2.46
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
5	MO135061404/0 Available to backorder	Trapezoidal Belt	£31.39 £26.16
6	MO384317081/0 Available to backorder	Lever	£14.00 £11.67
7	MO127510096/0 Available to backorder	Fulcrum Pin	£4.78 £3.98
8	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
9	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
10	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
11	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
12	MO125601554/0 In stock	Pulley	£25.68 £21.40
15	MO122446402/1 Available to backorder	Spring	£5.06 £4.22
21	MO118400965/0 Available to backorder	Hydrostatic Transaxle - Tuff Torq (K46T)	£1,401.84 £1,168.20
22	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
24	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
26	MO112735122/1 Available to backorder	Screw	£1.55 £1.29
27	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
30	MO127034069/0 Available to backorder	Rod	£3.79 £3.16
31	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
32	MO118564512/0 Available to backorder	Fairlead	£1.40 £1.17
33	MO112793301/0 In stock	Screw	£1.55 £1.29
34	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
35	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
36	MO112155000/0 In stock	Nut	£1.55 £1.29
62	MO184044001/0 Available to backorder	Rear Wheel Rimm	£76.02 £63.35
64	MO325670025/0 Available to backorder	Washer	£4.08 £3.40
66	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
67	MO125670006/0 Available to backorder	Washer	£1.55 £1.29
68	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
69	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
70	MO125160031/0 Available to backorder	Spacer	£3.38 £2.82
71	MO125670005/2 In stock	Washer	£4.08 £3.40
