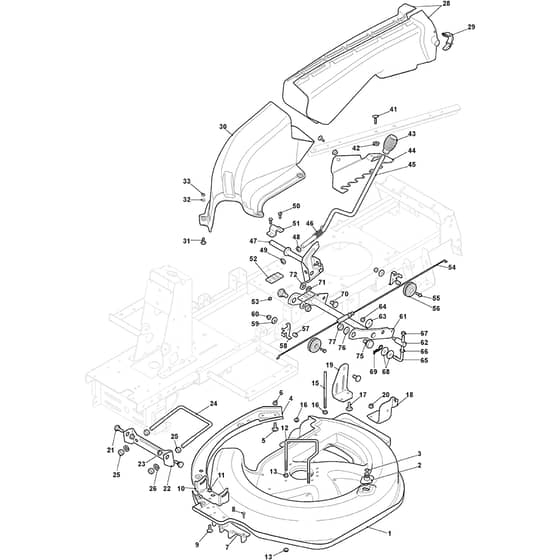

XE 966 HDB - 2013-2022 - 2T0070273/13 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

Castel Garden XE 966 HDB Parts Diagram

Product Name - XE 966 HDB

Model Year - 2013-2022

Model Type - MJ 66 E Hydro

Art.N - 2T0070273/13

Engine Model - B&S 950 ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384564114/1 Available to backorder	Cutting Plate. Black	£190.04 £158.37
2	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO384650107/0 Available to backorder	Stiffening	£22.52 £18.77
7	MO327488001/0 Available to backorder	Front Combi	£4.37 £3.64
8	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
10	MO327772175/0 Available to backorder	Front Bracket	£9.85 £8.21
12	MO127294008/0 Available to backorder	Belt Guide	£15.97 £13.31
15	MO127580077/0 Available to backorder	Belt Guide	£5.35 £4.46
18	MO327772179/0 Available to backorder	Bracket. Left	£6.76 £5.63
19	MO327772177/0 Available to backorder	Bracket. Right	£5.48 £4.57
21	MO127510121/0 Available to backorder	Plate	£5.35 £4.46
22	MO327543043/0 Available to backorder	Plate	£9.50 £7.92
23	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
24	MO127840056/0 Available to backorder	Front Tie Rod	£14.80 £12.33
26	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
28	MO384108054/0 Available to backorder	Conveyor	£49.26 £41.05
29	MO325774499/0 Available to backorder	Clamp	£2.44 £2.03
30	MO327107505/0 Available to backorder	Conveyor	£33.79 £28.16
31	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
32	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
33	MO112292102/0 In stock	Nut	£1.69 £1.41
41	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
42	MO112293200/0 In stock	Nut	£1.55 £1.29
43	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
44	MO327734063/0 Available to backorder	Sector. Height Adjustment	£16.46 £13.72
45	MO327315135/0 Available to backorder	Cutting Deck Lifting Lever	£22.67 £18.89
46	MO127430595/0 Available to backorder	Spring	£5.21 £4.34
47	MO384001035/1 Available to backorder	Fulcrum Axle	£32.38 £26.98
48	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
49	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
50	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
51	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
52	MO325785350/0 Available to backorder	Support	£1.55 £1.29
53	MO112154510/0 In stock	Nut	£1.55 £1.29
54	MO384004605/2 In stock	Deck Engage Cable Assy From S.N 23JA3RON001317	£20.84 £17.37
55	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
56	MO125601579/0 Available to backorder	Pulley	£2.81 £2.34
57	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
58	MO327543037/0 Available to backorder	Guide Shoe	£3.38 £2.82
59	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
60	MO112293201/0 In stock	Nut	£1.69 £1.41
61	MO384001037/0 Available to backorder	Axle	£32.38 £26.98
62	MO127510125/0 Available to backorder	Pin	£5.35 £4.46
65	MO127840057/0 Available to backorder	Tie Rod	£14.22 £11.85
66	MO112295200/0 In stock	Nut	£1.40 £1.17
67	MO112155000/0 In stock	Nut	£1.55 £1.29
68	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
69	MO125110803/0 Available to backorder	Cotter Pin	£3.79 £3.16
70	MO127510114/0 Available to backorder	Pin	£8.74 £7.28
71	MO325670008/1 In stock	Washer	£1.55 £1.29
75	MO127510123/0 Available to backorder	Pin	£6.76 £5.63
76	MO112521360/0 In stock	Washer	£1.55 £1.29
77	MO112156602/0 In stock	Low Self-Locking Nut M10 Uni7474 Acc.6S	£1.40 £1.17
