XE 966 HDB - 2013-2022 - 2T0070273/13 - Castel Garden Ride On Mower Blade Engagement Diagram

Description

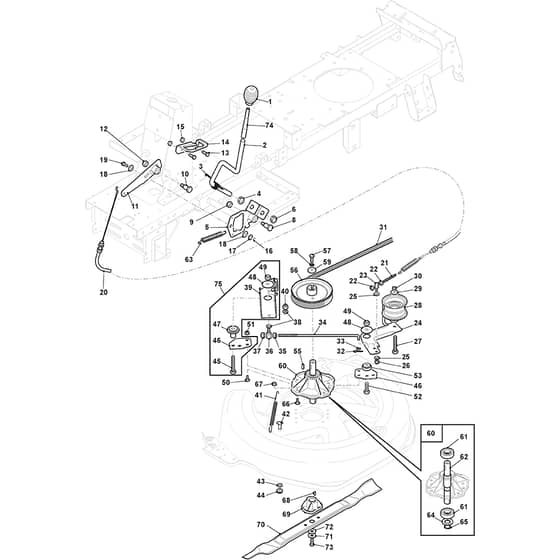

Castel Garden XE 966 HDB Parts Diagram

Product Name - XE 966 HDB

Model Year - 2013-2022

Model Type - MJ 66 E Hydro

Art.N - 2T0070273/13

Engine Model - B&S 950 ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
2	MO327315149/0 Available to backorder	Lever	£17.74 £14.78
3	MO127430595/0 Available to backorder	Spring	£5.21 £4.34
4	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
5	MO384317099/0 Available to backorder	Lever	£16.34 £13.62
6	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
10	MO127510122/1 Available to backorder	Bracket	£5.92 £4.93
11	MO384773577/0 Available to backorder	Bracket	£13.93 £11.61
13	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
14	MO327734065/0 Available to backorder	Sector	£5.21 £4.34
15	MO112292102/0 In stock	Nut	£1.69 £1.41
16	MO112436050/0 In stock	Plate	£1.82 £1.52
19	MO125510085/1 Available to backorder	Pin	£1.55 £1.29
20	MO384004606/1 Available to backorder	Blade Engagement Cable Assy From S.N 23JA3RON001317	£39.42 £32.85
21	MO127840058/2 Available to backorder	Tie Rod From S.N 22FA3RON002845	£12.56 £10.47
24	MO384307001/1 Available to backorder	Tightener Lever	£16.88 £14.07
27	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
28	MO127604008/0 Available to backorder	Pulley	£93.61 £78.01
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO135061428/0 In stock	Belt	£37.72 £31.43
32	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
34	MO127034085/0 Available to backorder	Connecting Rod	£9.00 £7.50
35	MO112293200/0 In stock	Nut	£1.55 £1.29
36	MO127510126/0 Available to backorder	Pin White Galvanized	£4.57 £3.81
36	MO125510168/0 Available to backorder	Pin Black Galvanized	£4.50 £3.75
38	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
40	MO112155000/0 In stock	Nut	£1.55 £1.29
41	MO127430592/0 Available to backorder	Brake Spring	£5.76 £4.80
43	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
44	MO112293201/0 In stock	Nut	£1.69 £1.41
46	MO327772191/0 Available to backorder	Bracket	£5.92 £4.93
47	MO127047021/0 Available to backorder	Bushing	£6.62 £5.52
48	MO112523090/0 Available to backorder	Washer	£1.82 £1.52
49	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
50	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
52	MO112692395/2 In stock	Screw	£3.24 £2.70
53	MO127047017/0 In stock	Bushing	£5.21 £4.34
55	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
56	MO127604014/0 Available to backorder	Pulley	£39.42 £32.85
57	MO112793102/0 In stock	Screw	£1.55 £1.29
58	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
59	MO125670007/0 In stock	Washer	£1.97 £1.64
60	MO384207251/0 Available to backorder	Blade Shaft Support	£104.87 £87.39
61	MO119216047/0 In stock	Bearing	£15.78 £13.15
62	MO127023003/0 Available to backorder	Shaft	£35.20 £29.33
63	MO125430259/0 Available to backorder	Spring	£4.78 £3.98
64	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
65	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
66	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
67	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
68	MO112139100/0 In stock	Key	£1.55 £1.29
69	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
70	MO184109505/0 In stock	Blade Winged	£40.39 £33.66
71	MO112523080/0 In stock	Washer	£1.55 £1.29
72	MO112508128/0 Available to backorder	Elastic Disc	£1.33 £1.11
73	MO112735694/0 In stock	Screw	£1.97 £1.64
74	MO327315151/1 Available to backorder	Lever	£21.67 £18.06
75	MO384220506/1 Available to backorder	Complete Blade Brake Assembly	£32.38 £26.98
