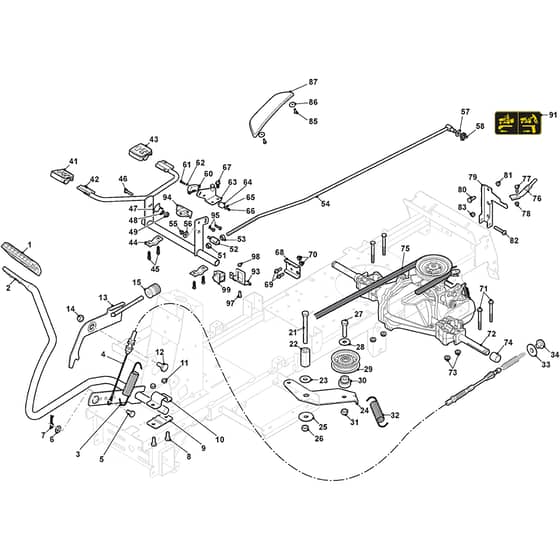

Castel Garden XE 966 HD Parts Diagram

Product Name - XE 966 HD

Model Year - 2021-2025

Model Type - MJ 66 E Hydro

Art.N - 2T0070473/C21

Engine Model - ST 250 ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.19 £5.99
2	MO384503013/0 Available to backorder	Pedal	£51.82 £43.18
4	MO384004604/1 Available to backorder	Brake Cable Assy (Hy)	£30.97 £25.81
5	MO127510120/1 Available to backorder	Pin	£4.24 £3.53
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
9	MO325785350/0 Available to backorder	Support	£1.55 £1.29
10	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
12	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
13	MO384002097/1 Available to backorder	Brake Control Rod	£14.21 £11.84
15	MO127395050/1 Available to backorder	Knob	£2.95 £2.46
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
22	MO127160065/0 Available to backorder	Spacer	£6.47 £5.39
23	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
24	MO327315139/0 Available to backorder	Tightener Lever	£6.34 £5.28
25	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
27	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
28	MO112523060/0 In stock	Washer	£1.55 £1.29
29	MO127604015/0 In stock	Pulley	£13.87 £11.56
30	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
32	MO127430594/0 In stock	Spring	£5.64 £4.70
33	MO112521360/0 In stock	Washer	£1.55 £1.29
34	MO127510124/0 Available to backorder	Pin	£4.22 £3.52
41	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
42	MO384503011/1 Available to backorder	Drive Pedal	£46.46 £38.72
43	MO325110331/0 Available to backorder	Clamp Cover Rear	£7.03 £5.86
44	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
45	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
47	MO127063022/0 Available to backorder	Plastic Neutral Switch Cam F72 Hy.T.Torq	£2.53 £2.11
48	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
52	MO127510103/0 Available to backorder	Pin	£4.22 £3.52
53	MO112293200/0 In stock	Nut	£1.55 £1.29
54	MO384002095/0 Available to backorder	Rod	£26.33 £21.94
55	MO112523040/0 In stock	Washer	£1.49 £1.24
57	MO325670011/0 In stock	Antifriction Washer	£1.55 £1.29
58	MO112436050/0 In stock	Plate	£1.82 £1.52
60	MO119410639/0 Available to backorder	Microswitch From S.N 24KA3RON001973	£7.20 £6.00
60	MO119410609/1LC In stock	Microswitch To S.N 24KA3RON001972	£27.17 £22.64
61	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
62	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
63	MO327543053/1 Available to backorder	Backup Plate	£4.08 £3.40
64	MO327546019/0 Available to backorder	Neutral Switch Fixing Plate	£1.40 £1.17
65	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
67	MO127943054/0 Available to backorder	Screw	£1.82 £1.52
68	MO327772223/0 Available to backorder	Bracket	£3.38 £2.82
71	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
72	MO118401024/0 Available to backorder	Hydrostatic Transmission - Lxht20	£751.90 £626.58
73	MO112154210/0 In stock	Nut	£1.69 £1.41
74	MO127160063/0 Available to backorder	Spacer	£3.67 £3.06
75	MO135061429/0 Available to backorder	Belt	£32.32 £26.93
76	MO327315137/0 Available to backorder	Lever	£4.22 £3.52
77	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
78	MO112154510/0 In stock	Nut	£1.55 £1.29
79	MO327772187/0 Available to backorder	Rear Bracket Support	£6.62 £5.52
80	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
82	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
83	MO112155000/0 In stock	Nut	£1.55 £1.29
85	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
86	MO112523030/0 Available to backorder	Washer	£1.55 £1.29
87	MO327110507/0 Available to backorder	Closing Hole Cover. Black	£13.09 £10.91
91	MO114361451/0 Available to backorder	Unblocking Lever Decal	£3.10 £2.58
93	MO327787107/0 Available to backorder	Support	£8.23 £6.86
94	MO327063026/0 Available to backorder	Cam	£3.67 £3.06
95	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
97	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
98	MO112292102/0 In stock	Nut	£1.69 £1.41
99	MO119410623/0 In stock	Micro Switch N.C.	£7.62 £6.35
