XE 866 B - 2013-2020 - 2T0040273/13 - Castel Garden Ride On Mower Optionals Diagram

Name: XE 866 B - 2013-2020 - 2T0040273/13 - Castel Garden Ride On Mower Optionals Diagram
SKU: xe_866_b_2t0040273_13_optionals-group
Price: 0.87 GBP
Availability: InStock

Part No. xe_866_b_2t0040273_13_optionals-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

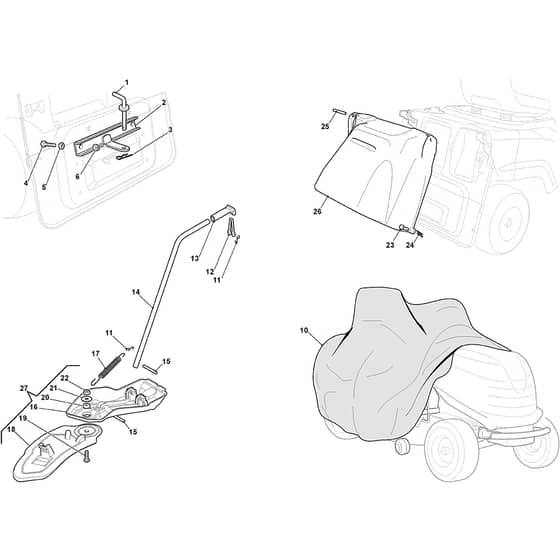

XE 866 B - 2013-2020 - 2T0040273/13 - Castel Garden Ride On Mower Optionals Diagram

Description

Castel Garden XE 866 B Parts Diagram

Product Name - XE 866 B

Model Year - 2013-2020

Model Type - MJ 66 E

Art.N - 2T0040273/13

Engine Model - B&S 875 ES

	Part No.	Details
1	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
2	MO382033109/0 Available to backorder	Rod	£56.32 £46.93
3	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
4	MO112794300/0 Available to backorder	Screw	£1.84 £1.53
5	MO112295200/0 In stock	Nut	£1.39 £1.16
6	MO112156602/0 In stock	Nut	£1.39 £1.16
10	MO1134-9177-01 In stock	Protective Cover	£68.32 £56.93
11	MO125253004/0 In stock	Mulch.Kit Fixing Hook	£1.55 £1.29
12	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
13	MO325280000/1 In stock	Handgrip	£3.10 £2.58
14	MO327394003/2 Available to backorder	Handle	£66.02 £55.02
15	MO127510116/0 Available to backorder	Pin	£8.23 £6.86
17	MO125430218/1 Available to backorder	Spring	£5.76 £4.80
19	MO112818700/0 In stock	Screw	£1.55 £1.29
20	MO127047013/1 Available to backorder	Bushing	£1.92 £1.60
21	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO125510022/1 In stock	Pin	£3.10 £2.58
24	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
25	MO127510127/0 Available to backorder	Pin	£7.55 £6.29
26	MO327600181/0 Available to backorder	Stone Guard. Black	£91.51 £76.26
27	MO384150052/0 In stock	Mulching Shoe Assembly	£25.62 £21.35
