XE 40 - 2025 - 291380063/C26 - Castel Garden Rotary Mower Electric Walkbehind Diagram

Description

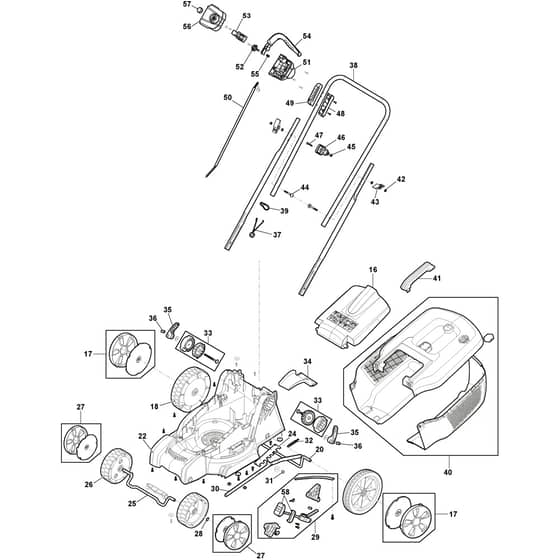

Castel Garden XE 40 Parts Diagram

Product Name - XE 40

Model Year - 2025

Model Type - C 380

Art.N - 291380063/C26

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
16	MO118806305/0 Available to backorder	Grey Stone Guard	£59.95 £49.96
17	MO118811044/0 Available to backorder	Rear Hub Cups Kit (Rh+Lh)	£10.07 £8.39
18	MO118802212/0 Available to backorder	Wheel	£21.67 £18.06
20	MO118811005/0 Available to backorder	Rear Wheels Axle	£9.22 £7.68
22	MO118811007/0 Available to backorder	Chassis	£61.38 £51.15
24	MO118811008/0 Available to backorder	Flange	£3.79 £3.16
25	MO118811009/0 Available to backorder	Front Wheels Axle	£5.76 £4.80
26	MO118811010/0 Available to backorder	Front Wheel	£11.69 £9.74
27	MO118811045/0 Available to backorder	Front Hub Cups Kit (Rh+Lh)	£10.00 £8.33
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO118811046/0 Available to backorder	Height Adjust Kit	£29.53 £24.61
30	MO118811011/0 Available to backorder	Height Adjustment Rod	£9.64 £8.03
31	MO118811012/0 Available to backorder	Spring	£1.40 £1.17
32	MO118811013/0 Available to backorder	Spring	£2.95 £2.46
33	MO118811047/0 Available to backorder	Joint Kit (Rh+Lh)	£12.95 £10.79
34	MO118811014/0 Available to backorder	Conveyor	£5.64 £4.70
35	MO118810994/0 Available to backorder	Yellow Knob	£6.05 £5.04
36	MO118811000/0 Available to backorder	Pin	£3.10 £2.58
37	MO118811015/0 Available to backorder	Spring	£2.26 £1.88
38	MO118805675/0 Available to backorder	Handle Kit (Lower + Top Handle)	£58.28 £48.57
39	MO122192000/1 Available to backorder	Cable Holder	£1.82 £1.52
40	MO118811054/0 Available to backorder	Grasscatcher Kit	£67.57 £56.31
41	MO118810996/0 Available to backorder	Grasscatcher Handle	£4.22 £3.52
42	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
43	MO118810137/0 Available to backorder	Knob	£4.78 £3.98
44	MO112815255/0 Available to backorder	Cup Square Bolt	£1.40 £1.17
45	MO2135040 Available to backorder	Screw	£1.38 £1.15
46	MO118810083/0 Available to backorder	Hook	£4.08 £3.40
49	MO118810087/0 Available to backorder	Upper Fixation Plate	£2.12 £1.77
50	MO118805676/0 In stock	Cable	£17.68 £14.73

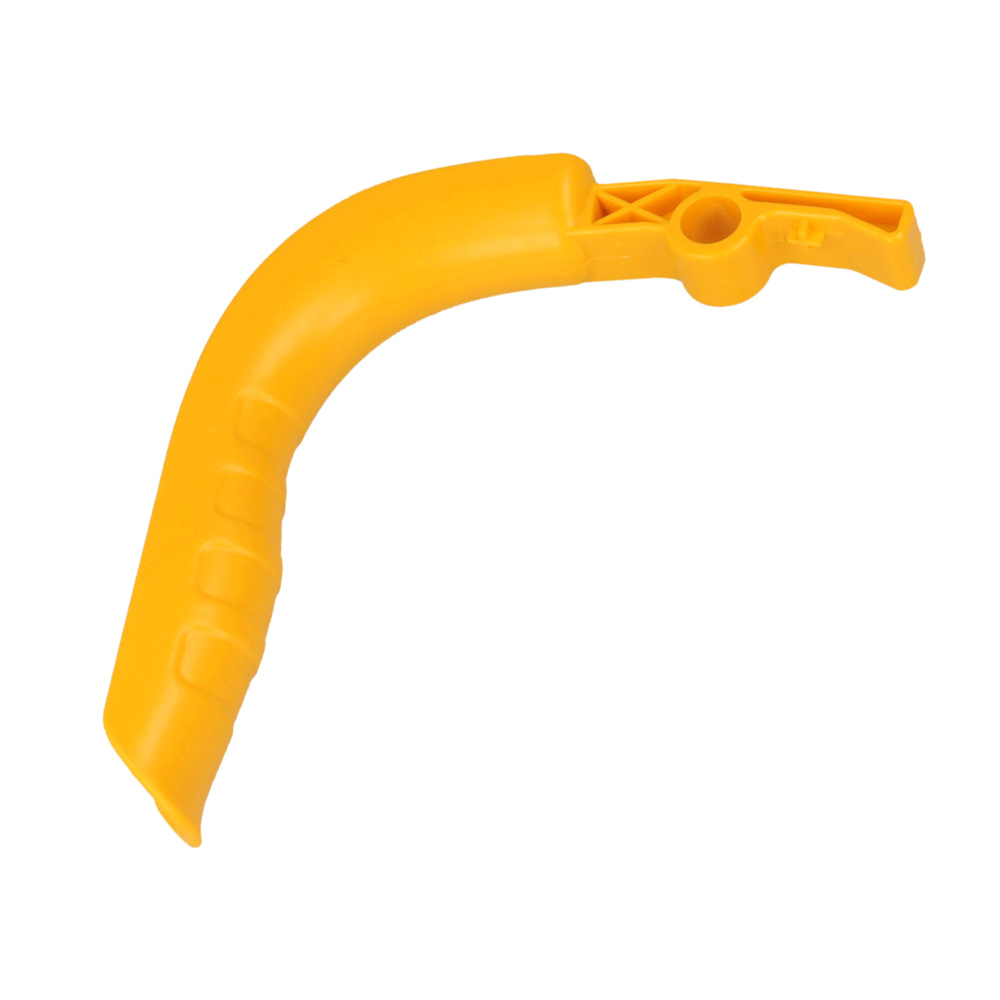

54	MO118811713/0 Available to backorder	Yellow Lever	£7.60 £6.33
56	MO118804674/0 Available to backorder	Switchbox Upper	£39.42 £32.85
57	MO118810094/0 Available to backorder	Button. Yellow	£1.55 £1.29
58	MO118811698/0 Available to backorder	Height Adjustment Knob	£5.78 £4.82
