XE 36 - 2025 - 291340063/C26 - Castel Garden Rotary Mower Electric Walkbehind 2 Diagram

Description

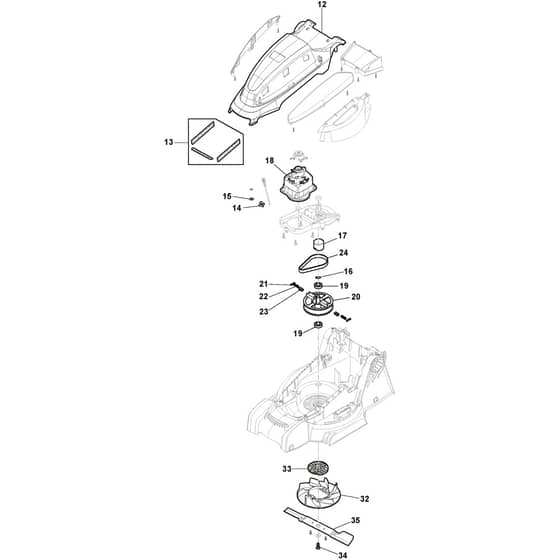

Castel Garden XE 36 Parts Diagram

Product Name - XE 36

Model Year - 2025

Model Type - C 340

Art.N - 291340063/C26

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
12	MO118805677/0 Available to backorder	Motor Cover	£12.32 £10.27
13	MO118811049/0 Available to backorder	Air Filters Kit	£5.21 £4.34
14	MO118801615/0 Available to backorder	Wire Connector	£1.33 £1.11
16	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
17	MO118810106/0 Available to backorder	Brake	£3.79 £3.16
18	MO118805678/0 Available to backorder	Electric Motor	£74.62 £62.18
19	MO118805679/0 Available to backorder	Ball Bearing	£15.90 £13.25
20	MO118805680/0 Available to backorder	Pulley	£16.06 £13.38
21	MO118810102/0 Available to backorder	Insert	£1.55 £1.29
22	MO118810108/0 Available to backorder	Brake Spring	£1.97 £1.64
23	MO118805681/0 Available to backorder	Brake	£5.35 £4.46
24	MO118810092/0 Available to backorder	Belt	£14.95 £12.46
32	MO118811004/0 Available to backorder	Motor Fan	£5.92 £4.93
33	MO118805682/0 Available to backorder	Blade Hub	£6.26 £5.22
34	MO112793301/0 In stock	Screw	£1.55 £1.29

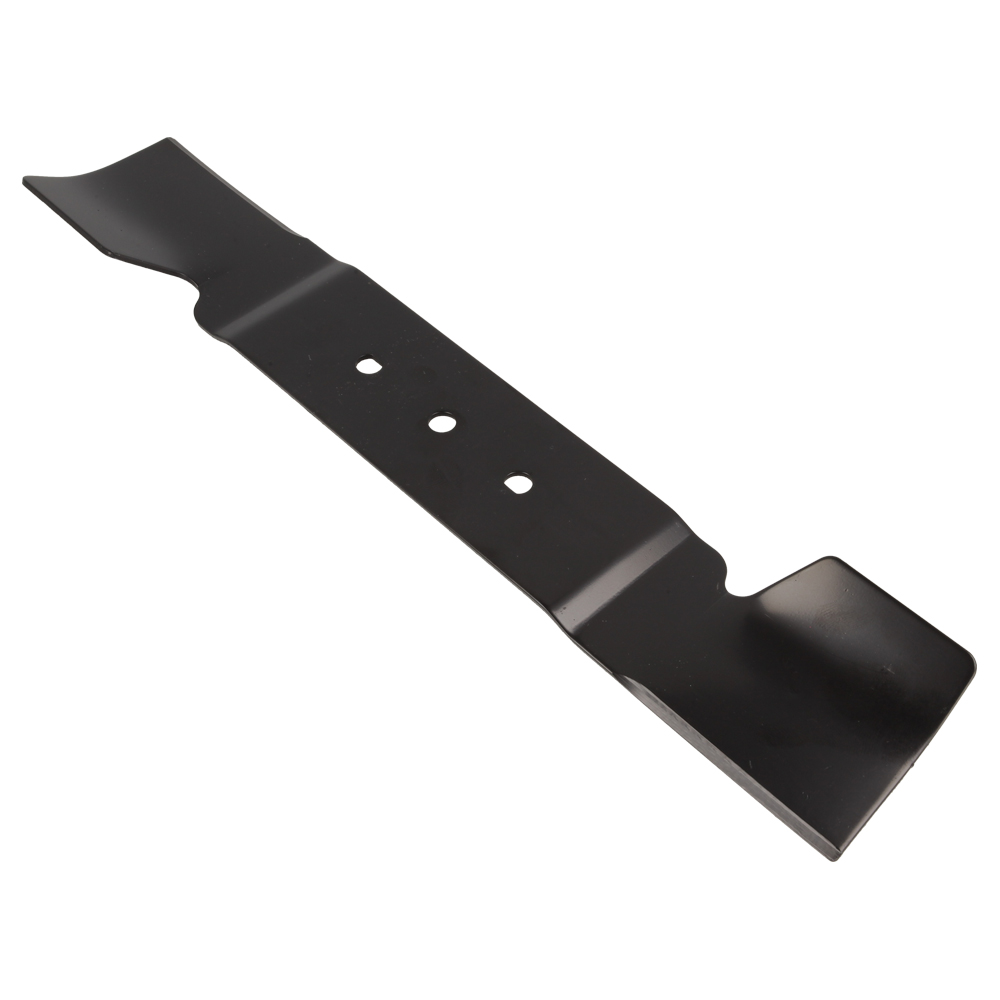

35	MO118805683/0 Available to backorder	Blade	£17.64 £14.70
