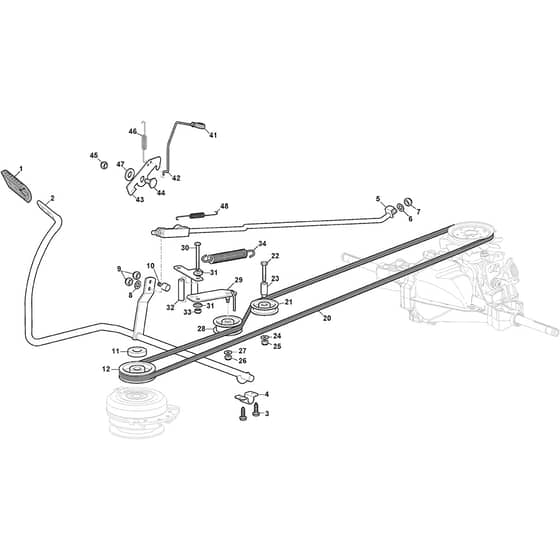

XDL 210 HD - 2022-2025 - 2T1220473/C22 - Castel Garden Ride On Mower Brake Controls Diagram

Description

Castel Garden XDL 210 HD Parts Diagram

Product Name - XDL 210 HD

Model Year - 2022-2025

Model Type - SDX 108 Hydro

Art.N - 2T1220473/C22

Engine Model - ST 550 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.19 £5.99
2	MO382000641/1 Available to backorder	Brake Pedal Assembly	£52.08 £43.40
3	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate To S.N 23FA3RON000141	£4.37 £3.64
4	MO325547467/0 Available to backorder	Lifting Deck Axle Plate From S.N 23FA3RON000142	£5.06 £4.22
5	MO382000576/1 Available to backorder	Brake Control Rod Assy From S.N 21KA3RON005601	£34.15 £28.46
5	MO382000576/0 Available to backorder	Brake Control Rod Assy To S.N 21KA3RON005600	£30.97 £25.81
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.40 £1.17
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin	£3.52 £2.93
11	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062003/1 In stock	Belt	£41.75 £34.79
21	MO125601613/1 Available to backorder	Pulley (Plastic)	£16.99 £14.16
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer	£2.81 £2.34
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
28	MO125601554/0 In stock	Pulley	£25.68 £21.40
29	MO382318245/1 Available to backorder	Lever	£19.70 £16.42
30	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
31	MO125038021/0 Available to backorder	Bushing	£1.26 £1.05
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
41	MO125394509/1 In stock	Knob	£2.44 £2.03
42	MO125033113/0 Available to backorder	Rod	£3.38 £2.82
43	MO325253011/1 Available to backorder	Hook	£3.67 £3.06
44	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
46	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
48	MO125430269/2 Available to backorder	Spring To S.N 22AA3RON021448	£2.40 £2.00
