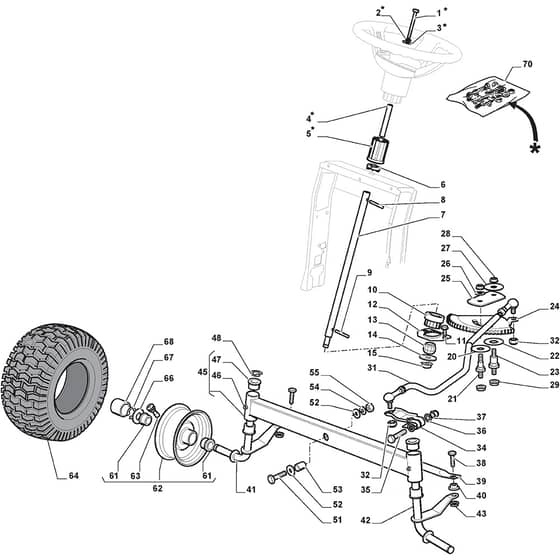

XDL 210 HD - 2016-2019 - 2T1230273/15 - Castel Garden Ride On Mower Steering Diagram

Description

Castel Garden XDL 210 HD Parts Diagram

Product Name - XDL 210 HD

Model Year - 2016-2019

Model Type - SDX 108 Hydro

Art.N - 2T1230273/15

Engine Model - Intek 5210 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
2	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
3	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
4	MO125160047/0 Available to backorder	Spacer	£2.98 £2.48
5	MO325785318/0 Available to backorder	Support	£8.45 £7.04
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520007/0 Available to backorder	Steering Column	£19.70 £16.42
8	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
9	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.68 £2.23
14	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
15	MO112436030/0 In stock	Plate	£1.82 £1.52
70	MO382180124/0 Available to backorder	Screw Assembly Kit	£26.04 £21.70
