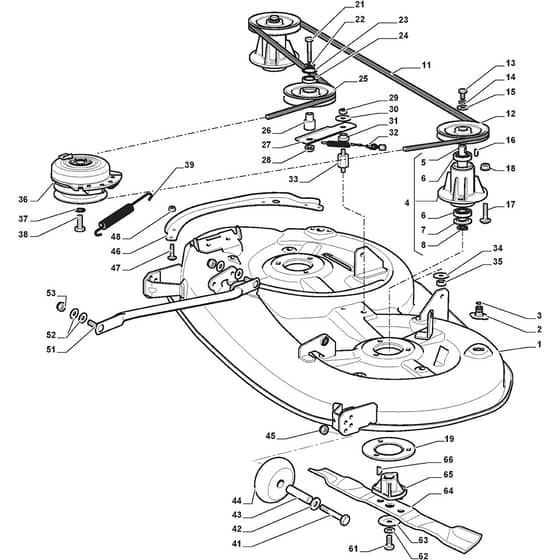

XDL 210 HD - 2016-2019 - 2T1230273/15 - Castel Garden Ride On Mower Cutting Plate Diagram

Description

Castel Garden XDL 210 HD Parts Diagram

Product Name - XDL 210 HD

Model Year - 2016-2019

Model Type - SDX 108 Hydro

Art.N - 2T1230273/15

Engine Model - Intek 5210 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382565069/5 Available to backorder	Cutting Plate Grey	£436.39 £363.66
2	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO382207204/1 Available to backorder	Flange Assy From 01-9-2015	£102.06 £85.05
5	MO125020804/0 In stock	Blade Shaft	£35.20 £29.33
6	MO119216047/0 In stock	Bearing To 31-8-2014	£15.78 £13.15
7	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
8	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
11	MO135061506/1 Available to backorder	Belt	£32.32 £26.93
12	MO125601571/0 Available to backorder	Pulley	£30.70 £25.58
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
15	MO125670007/0 In stock	Washer	£1.97 £1.64
16	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
17	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
18	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
19	MO325160505/0 Available to backorder	Disc	£12.82 £10.68
21	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
22	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
23	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
24	MO119216048/0 In stock	Bearing To 31-8-2014	£18.31 £15.26
25	MO125601606/0 Available to backorder	Pulley	£30.97 £25.81
26	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
27	MO325318255/0 Available to backorder	Lever	£6.76 £5.63
28	MO112293201/0 In stock	Nut	£1.69 £1.41
29	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
30	MO125670022/0 Available to backorder	Washer	£1.97 £1.64
31	MO125040635/0 In stock	Bushing	£4.19 £3.49
32	MO382004619/0 Available to backorder	Blades Engagement Wire	£24.78 £20.65
33	MO125160057/1 Available to backorder	Spacer From 01-9-2014	£6.47 £5.39
34	MO112523080/0 In stock	Washer	£1.55 £1.29
35	MO112156602/0 In stock	Nut	£1.40 £1.17
36	MO118399062/1 Available to backorder	Electromagnetic Clutch	£341.58 £284.65
37	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
38	MO112737320/0 In stock	Screw	£4.37 £3.64
39	MO125430277/1 Available to backorder	Spring From 01-9-2011	£2.12 £1.77
39	MO122430217/0 In stock	Tension Spring From 01-9-2010 To 31-8-2011	£9.06 £7.55
41	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
42	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
43	MO125510072/1 In stock	Spacer	£1.82 £1.52
44	MO182700001/0 In stock	Levelling Small Wheel	£5.48 £4.57
46	MO325547259/1 Available to backorder	Stiffening	£14.99 £12.49
47	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
48	MO112154510/0 In stock	Nut	£1.55 £1.29
51	MO382000565/1 Available to backorder	Cutting Deck Equalizer Rod Assy	£20.62 £17.18
52	MO325670008/1 In stock	Washer	£1.55 £1.29
61	MO112735694/0 In stock	Screw	£1.97 £1.64
63	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
64	MO182004357/0 In stock	Mulching Blade	£28.28 £23.57
65	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
66	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
