XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Rear Plate Diagram

Name: XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Rear Plate Diagram
SKU: xdc_170_hd_2t2120273_o13_rear_plate-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

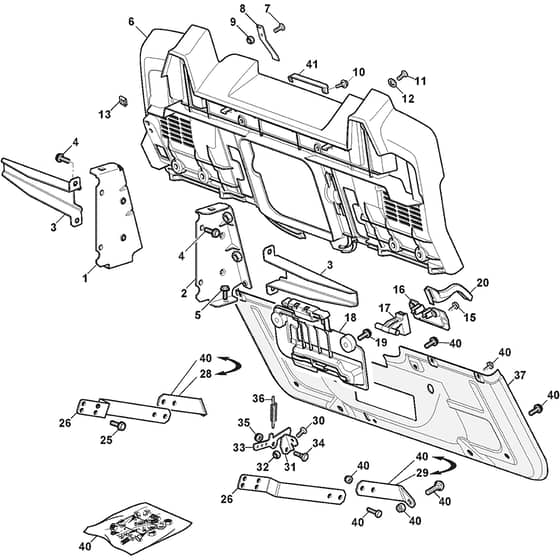

XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Rear Plate Diagram

Description

Castel Garden XDC 170 HD Parts Diagram

Product Name - XDC 170 HD

Model Year - 2015-2016

Model Type - MPX 84 Hydro

Art.N - 2T2120273/O13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325774501/0 Available to backorder	Right Clamp Bracket	£12.95 £10.79
2	MO325774507/0 Available to backorder	Left Clamp Bracket	£16.34 £13.62
3	MO325650163/0 Available to backorder	Stiffening	£11.12 £9.27
6	MO325547299/2 In stock	Rear Plate. Upper Part	£45.04 £37.53
8	MO127430600/0 Available to backorder	Spring From 01-9-2013	£2.81 £2.34
12	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
13	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
15	MO112728686/0 In stock	Screw	£1.55 £1.29
16	MO325109522/0 Available to backorder	Protection Cover	£2.40 £2.00
17	MO325318276/0 In stock	Gearshift	£3.52 £2.93
18	MO325785428/0 Available to backorder	Support From 01-9-2012	£8.76 £7.30
19	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
20	MO325318277/0 In stock	Lever	£1.55 £1.29
25	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
26	MO325774521/0 Available to backorder	Clamp	£9.28 £7.73
28	MO325650151/0 Available to backorder	Stiffening	£8.17 £6.81
29	MO325650153/0 Available to backorder	Stiffening	£8.17 £6.81
30	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
31	MO325755061/0 Available to backorder	Bracket	£2.40 £2.00
32	MO112154330/0 In stock	Nut	£1.55 £1.29
33	MO325774533/0 Available to backorder	Clamp	£4.66 £3.88
34	MO125510080/2 Available to backorder	Pin From 01-9-2015	£1.40 £1.17
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO125430282/1 Available to backorder	Spring	£1.82 £1.52
37	MO382547071/1 Available to backorder	Rear Plate. Lower Part	£114.02 £95.02
40	MO382180146/0 Available to backorder	Outfit. Screws	£32.51 £27.09
41	MO325600107/0 Available to backorder	Micro Protection	£4.93 £4.11
