XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

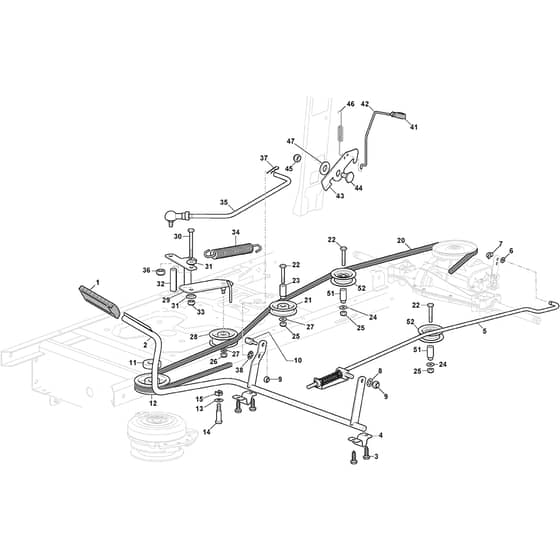

Castel Garden XDC 170 HD Parts Diagram

Product Name - XDC 170 HD

Model Year - 2015-2016

Model Type - MPX 84 Hydro

Art.N - 2T2120273/O13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110391/0 Available to backorder	Clamp Cover	£6.76 £5.63
2	MO382500047/2 Available to backorder	Pedal From S.N 00088627	£53.50 £44.58
3	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
5	MO382000568/0 In stock	Brake Control Rod Assy	Was £20.11 £16.76 Special Price £13.48 £11.23
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
7	MO112436050/0 In stock	Plate	£1.82 £1.52
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510116/0 Available to backorder	Pin	£3.67 £3.06
11	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
12	MO125601567/0 Available to backorder	Pulley	£29.56 £24.63
13	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
14	MO125580030/0 Available to backorder	Belt Guide Peg	£4.50 £3.75
15	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
20	MO135062018/0LC In stock	Belt	£38.44 £32.03
21	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
21	MO125601555/0 In stock	Pulley Bearing hole ø16	£29.28 £24.40
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer From S.N 00088194	£2.81 £2.34
28	MO125601554/0 In stock	Pulley	£25.68 £21.40
29	MO382318283/0 In stock	Lever	£18.48 £15.40
30	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
31	MO125038021/0 Available to backorder	Bushing From S.N DD266856	£1.26 £1.05
31	MO125038002/1 In stock	Bushing To S.N DD266855	£1.55 £1.29
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
35	MO382820016/1 Available to backorder	Tie Rod	£16.75 £13.96
36	MO112293201/0 In stock	Nut	£1.69 £1.41
37	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
38	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
41	MO125394509/1 In stock	Knob	£2.44 £2.03
42	MO125033113/0 Available to backorder	Rod	£3.38 £2.82
43	MO325253011/1 Available to backorder	Hook	£3.67 £3.06
44	MO122524970/2 Available to backorder	Fulcrum Pin From S.N 88152	£1.90 £1.58
44	MO122524970/3 Available to backorder	Pin From S.N 88153	£1.69 £1.41
45	MO112155000/0 In stock	Nut	£1.55 £1.29
46	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
47	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
51	MO125160111/0 Available to backorder	Spacer	£4.22 £3.52
52	MO125601612/0 In stock	Pulley	£32.76 £27.30
