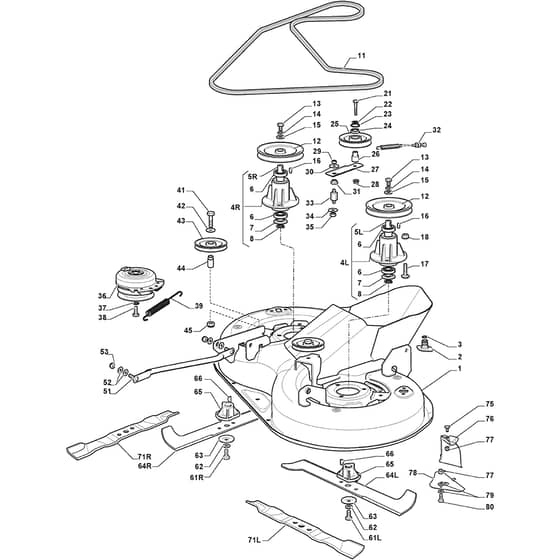

XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Cutting Deck Diagram

Name: XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Cutting Deck Diagram
SKU: xdc_170_hd_2t2120273_o13_cutting_deck-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 170 HD - 2015-2016 - 2T2120273/O13 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

Castel Garden XDC 170 HD Parts Diagram

Product Name - XDC 170 HD

Model Year - 2015-2016

Model Type - MPX 84 Hydro

Art.N - 2T2120273/O13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564113/2 Available to backorder	Cutting Plate Black	£401.21 £334.34
2	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO382207204/1 Available to backorder	Flange Assy Pos. 4L From 01-9-2015 To 31-8-2016	£102.06 £85.05
4	MO382207205/1 In stock	Flange Assy Pos. 4R From 01-9-2015	£102.06 £85.05
5	MO125020804/0 In stock	Blade Shaft Pos. 5L	£35.20 £29.33
5	MO125020805/0 In stock	Right Blade Shaft Pos. 5R	£35.20 £29.33
6	MO119216047/0 In stock	Bearing To 31-8-2014	£15.78 £13.15
6	MO119216048/0 In stock	Bearing From 01-9-2014	£18.31 £15.26
7	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
8	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
11	MO135061508/0LC In stock	Drive Belt	£63.29 £52.74
12	MO125601585/1 Available to backorder	Pulley	£43.64 £36.37
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
15	MO125670007/0 In stock	Washer	£1.97 £1.64
16	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
80	MO112790781/0 In stock	Screw	£1.55 £1.29
