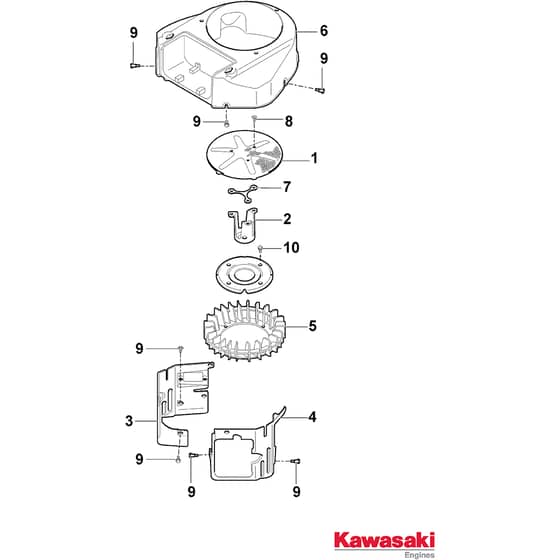

XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Fan Cover Diagram

Name: XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Fan Cover Diagram
SKU: xdc_160_hd_2t2610673_c19_fan_cover-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Fan Cover Diagram

Description

Castel Garden XDC 160 HD Parts Diagram

Product Name - XDC 160 HD

Model Year - 2019

Model Type - MPX 98 Hydro

Art.N - 2T2610673/C19

Engine Model - Kawasaki FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	KA14037-70089H Available to backorder	Screen	£58.72 £48.93

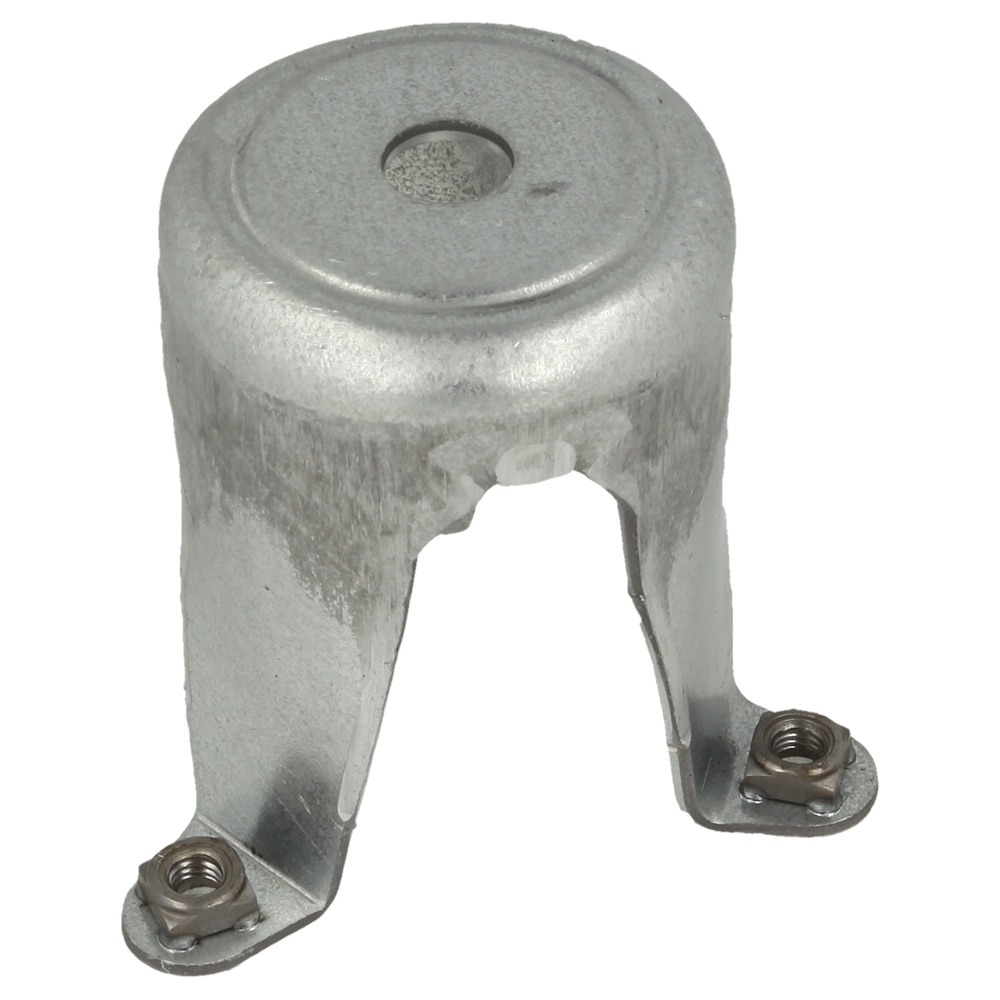

2	KA23062-7022 Available to backorder	Bracket Kawasaki p.n 23062-7022	£21.58 £17.98
3	KA49089-7083 Available to backorder	Engine Cover Kawasaki p.n 49089-7083	£28.08 £23.40
4	KA49089-7084 Available to backorder	Engine Cover Kawasaki p.n 49089-7084	£38.18 £31.82
5	KA59041-0024 Available to backorder	Fan Kawasaki p.n 59041-0008	£31.68 £26.40
6	KA59066-0044 Available to backorder	Fan Cover Kawasaki p.n 59066-0044	£187.32 £156.10

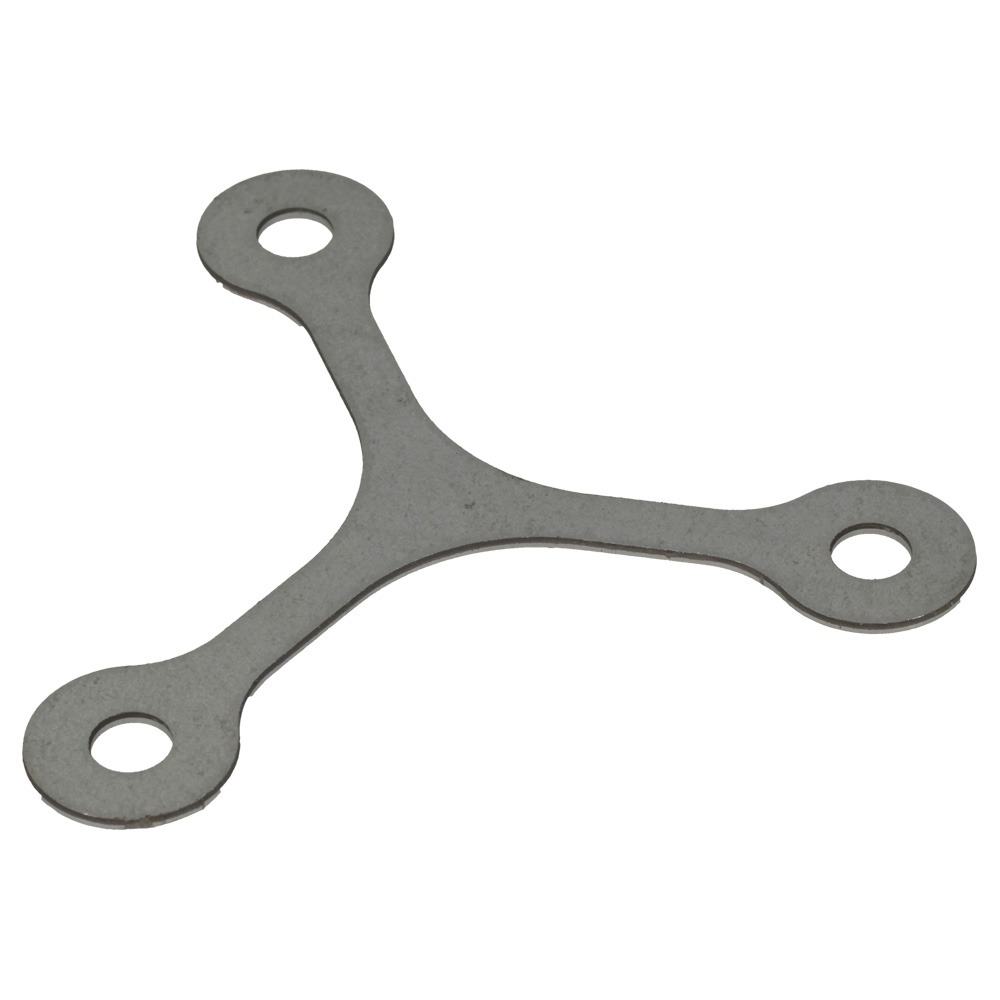

7	KA92026-7007 Available to backorder	Spacer Kawasaki p.n 92026-7007	£9.67 £8.06
8	MO112727794/0 Available to backorder	Screw Kawasaki p.n 92151-7012	£1.40 £1.17
9	MO112735402/0 Available to backorder	Screw Kawasaki p.n 92153-7007	£1.55 £1.29
10	MO112735699/0 Available to backorder	Screw M6 X 12	£1.40 £1.17
