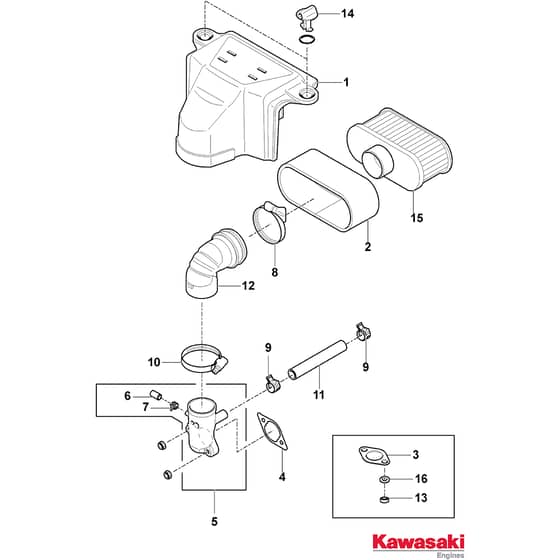

XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Air Filter Diagram

Name: XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Air Filter Diagram
SKU: xdc_160_hd_2t2610673_c19_air_filter-group
Price: 0.81 GBP
Availability: InStock

Part No. xdc_160_hd_2t2610673_c19_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 160 HD - 2019 - 2T2610673/C19 - Castel Garden Ride On Mower Air Filter Diagram

Description

Castel Garden XDC 160 HD Parts Diagram

Product Name - XDC 160 HD

Model Year - 2019

Model Type - MPX 98 Hydro

Art.N - 2T2610673/C19

Engine Model - Kawasaki FS481V

	Part No.	Details
1	KA11011-0787 Available to backorder	Filter Cover	£50.60 £42.17
2	KA11013-7046 In stock	Air Filter Kawasaki p.n 11013-7046	£10.57 £8.81
3	KA11060-7016 Available to backorder	Muffler Gasket Kawasaki p.n 11060-7016	£4.69 £3.91
4	KA11061-7095 In stock	Gasket Kawasaki p.n 11061-7095	£7.81 £6.51
5	KA16060-0742 Available to backorder	Pipe Kawasaki p.n 16060-0742	£24.14 £20.12
6	KA92066-0095 Available to backorder	Plug Kawasaki p.n 92066-0095	£9.00 £7.50
7	KA92170-2042 Available to backorder	Clamp Kawasaki p.n 92170-2042	£0.97 £0.81
8	KA92173-1001 Available to backorder	Clamp Kawasaki p.n 92173-1001	£6.68 £5.57
10	KA92173-7009 Available to backorder	Clamp Kawasaki p.n 92173-7009	£14.00 £11.67
11	KA92192-7146 Available to backorder	Tube Kawasaki p.n 92192-7146	£3.04 £2.53
12	KA92192-7164 Available to backorder	Tube Kawasaki p.n 92192-7164	£29.69 £24.74
13	MO112293200/0 In stock	Nut Kawasaki p.n 92210-7027	£1.55 £1.29
14	KA92210-1730 Available to backorder	Knob Kawasaki p.n 92210-7038	£1.06 £0.88
15	KA11013-0752 In stock	Air Filter Kawasaki p.n 99999-0384	£35.99 £29.99
16	MO112583500/0 In stock	Washer M8 Uni 1751 Wz	£1.55 £1.29
