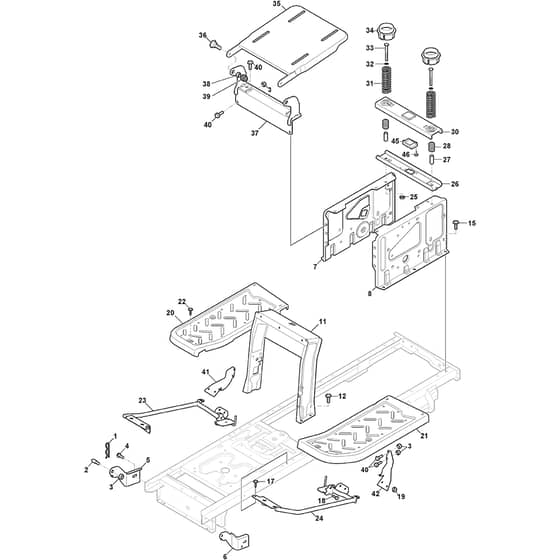

Castel Garden XDC 150 HDB Parts Diagram

Product Name - XDC 150 HDB

Model Year - 2023-2024

Model Type - MPX 84 Hydro

Art.N - 2T2100273/C23

Engine Model -

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
5	MO325547225/0 Available to backorder	Right Plate	£6.32 £5.27
6	MO325547227/0 Available to backorder	Left Plate	£6.77 £5.64
7	MO325785331/2 Available to backorder	Right Seat Support	£32.24 £26.87
8	MO325785333/2 Available to backorder	Left Seat Support	£32.24 £26.87
11	MO382785169/1 Available to backorder	Steering Column Support	£57.71 £48.09
19	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325500050/1 Available to backorder	Right Footboard From S.N 24AA3RON001123	£15.25 £12.71
20	MO325500050/0 Available to backorder	Right Footboard To S.N 24AA3RON001122	£15.25 £12.71
21	MO325500051/1 Available to backorder	Left Footboard From S.N 24AA3RON001123	£24.43 £20.36
22	MO112735402/0 In stock	Screw	£1.55 £1.29
23	MO382785223/2 Available to backorder	Footboard Support From S.N 23LA3RON004399	£36.59 £30.49
23	MO382785223/1 Available to backorder	Footboard Support To S.N 23LA3RON004398	£36.59 £30.49
24	MO382785221/1 Available to backorder	Footboard Support To S.N 23LA3RON004398	£36.59 £30.49
24	MO382785221/2 Available to backorder	Footboard Support From S.N 23LA3RON004399	£36.59 £30.49
25	MO112293201/0 In stock	Nut	£1.70 £1.42
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.39 £1.16
30	MO325820113/0 Available to backorder	Seat Switch Support Bar	£9.58 £7.98
31	MO125430264/1 Available to backorder	Spring	£9.38 £7.82
32	MO112521350/0 In stock	Washer	£1.55 £1.29
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO325600148/0 Available to backorder	Hood	£1.46 £1.22
35	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
36	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
37	MO382820151/3 Available to backorder	Seat Support	£23.34 £19.45
38	MO112155010/0 In stock	Nut	£2.11 £1.76
39	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
40	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
41	MO325650155/2 Available to backorder	Support	£10.40 £8.67
42	MO325650157/2 Available to backorder	Support	£10.85 £9.04
45	MO325785379/1 Available to backorder	Support	£1.63 £1.36
46	MO112728697/0 In stock	Screw	£1.55 £1.29
