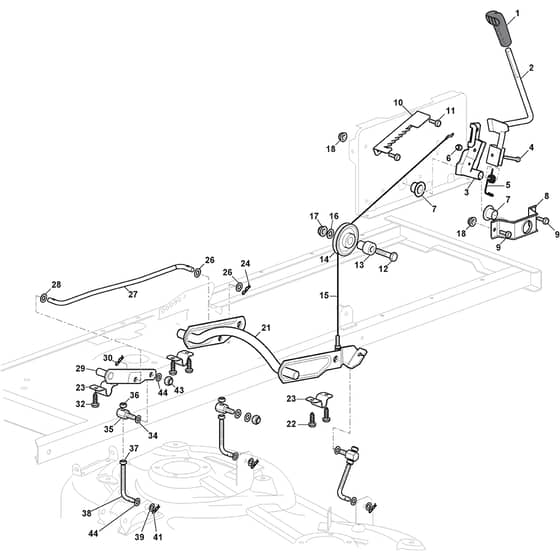

XDC 150 HD - 2022-2025 - 2T2100473/C22 - Castel Garden Ride On Mower Deck Lifting Diagram

Name: XDC 150 HD - 2022-2025 - 2T2100473/C22 - Castel Garden Ride On Mower Deck Lifting Diagram
SKU: xdc_150_hd_2t2100473_c22_deck_lifting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 150 HD - 2022-2025 - 2T2100473/C22 - Castel Garden Ride On Mower Deck Lifting Diagram

Description

Castel Garden XDC 150 HD Parts Diagram

Product Name - XDC 150 HD

Model Year - 2022-2025

Model Type - MPX 84 Hydro

Art.N - 2T2100473/C22

Engine Model - ST 400

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318255/0 Available to backorder	Lever	£13.93 £11.61
3	MO382318231/1 Available to backorder	Lifting Axle Assy	£7.03 £5.86
4	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
5	MO125430261/0 Available to backorder	Spring	£1.40 £1.17
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.20 £5.17
10	MO325735515/0 Available to backorder	Steering Sector	£8.02 £6.68
11	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 Available to backorder	Pulley	£2.81 £2.34
15	MO382004620/0 In stock	Deck Lifting Wire	£14.86 £12.38
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.69 £1.41
18	MO112155000/0 In stock	Nut	£1.55 £1.29
21	MO382318297/1 Available to backorder	Axle	£30.97 £25.81
22	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
44	MO112521360/0 In stock	Washer	£1.55 £1.29
