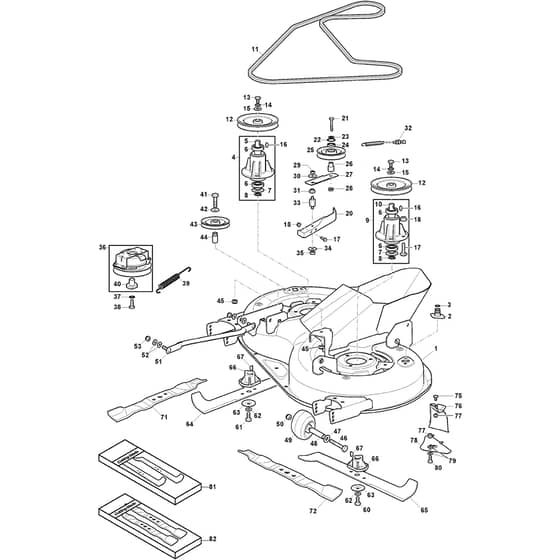

XDC 150 HD - 2015-2021 - 2T2120473/15 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

Castel Garden XDC 150 HD Parts Diagram

Product Name - XDC 150 HD

Model Year - 2015-2021

Model Type - MPX 84 Hydro

Art.N - 2T2120473/15

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564113/2 Available to backorder	Cutting Plate Black From S.N 22CA3RON004261	£401.21 £334.34
2	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO382207205/1 In stock	Flange Assy	£102.06 £85.05
5	MO125020805/0 In stock	Right Blade Shaft	£35.20 £29.33
6	MO119216047/0 In stock	Bearing	£15.78 £13.15
7	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
8	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
9	MO382207204/1 Available to backorder	Flange Assy	£102.06 £85.05
10	MO125020804/0 In stock	Blade Shaft	£35.20 £29.33
11	MO135061508/0LC In stock	Drive Belt	£63.29 £52.74
12	MO125601585/1 Available to backorder	Pulley	£43.64 £36.37
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
15	MO125670007/0 In stock	Washer	£1.97 £1.64
16	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
17	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
18	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
20	MO325785391/0 Available to backorder	Bracket	£21.89 £18.24
21	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
22	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
23	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
24	MO119216048/0 In stock	Bearing	£18.31 £15.26
25	MO125601595/0 In stock	Pulley	£35.20 £29.33
26	MO125160052/0 Available to backorder	Spacer	£2.95 £2.46
27	MO325318289/0 Available to backorder	Lever	£6.76 £5.63
29	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
30	MO125670022/0 Available to backorder	Washer	£1.97 £1.64
31	MO125040635/0 In stock	Bushing	£4.19 £3.49
32	MO382004618/0 In stock	Wire	£22.81 £19.01
33	MO125160049/0 Available to backorder	Spacer	£7.02 £5.85
34	MO112523080/0 In stock	Washer	£1.55 £1.29
36	MO118399075/1 Available to backorder	Electromagnetic Clutch Ogura	£295.63 £246.36
37	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
38	MO112737320/0 In stock	Screw	£4.37 £3.64
39	MO125430277/1 Available to backorder	Spring From S.N 21GA3RON003668	£2.12 £1.77
41	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
42	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
43	MO325601599/0 In stock	Pulley Bearing hole ø15 (Steel) To S.N 21KA3RON000770	£19.14 £15.95
43	MO125601613/1 Available to backorder	Pulley Bearing hole ø15 (Plastic) From S.N 21KA3RON000771	£16.99 £14.16
44	MO125160110/0 Available to backorder	Spacer	£3.38 £2.82
45	MO112155000/0 In stock	Nut	£1.55 £1.29
46	MO112692100/0 Available to backorder	Screw	£2.81 £2.34
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
48	MO125160072/0 Available to backorder	Spacer	£3.94 £3.28
49	MO182700006/0 In stock	Anti Scalp Wheel Ø95 ø95 From S.N 22FA3RON001030	£17.68 £14.73
50	MO112293201/0 In stock	Nut	£1.69 £1.41
51	MO382000565/1 Available to backorder	Cutting Deck Equalizer Rod Assy	£20.62 £17.18
52	MO325670008/1 In stock	Washer	£1.55 £1.29
53	MO112156602/0 In stock	Nut	£1.40 £1.17
60	MO112735694/0 In stock	Screw	£1.97 £1.64
61	MO112735695/1 In stock	Screw	£3.79 £3.16
82	MO1134-9221-01 Available to backorder	Mulching Blades Stiga Packed into 182004360.0 + 182004361.0	£44.45 £37.04
