XDC 140 HDG - 2015 - 2T2110473/14 - Castel Garden Ride On Mower Seat Diagram

Description

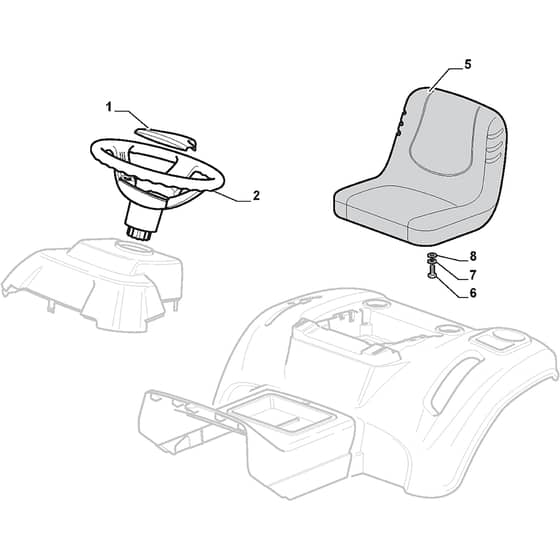

Castel Garden XDC 140 HDG Parts Diagram

Product Name - XDC 140 HDG

Model Year - 2015

Model Type - MPX 84 Hydro

Art.N - 2T2110473/14

Engine Model - Castelgarden 7500 AVS

	Part No.	Details
1	MO325580503/0 Available to backorder	Steering Plate Cover	£6.05 £5.04
2	MO325961219/0 Available to backorder	Steering Wheel	£36.59 £30.49
5	MO125722483/0 Available to backorder	Seat From 01-9-2017	£190.04 £158.37
5	MO125722463/0 Available to backorder	Seat To 31-8-2017	£204.13 £170.11
6	MO112792611/0 In stock	Screw	£1.55 £1.29
7	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
8	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
