XDC 140 HDG - 2015 - 2T2110473/14 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

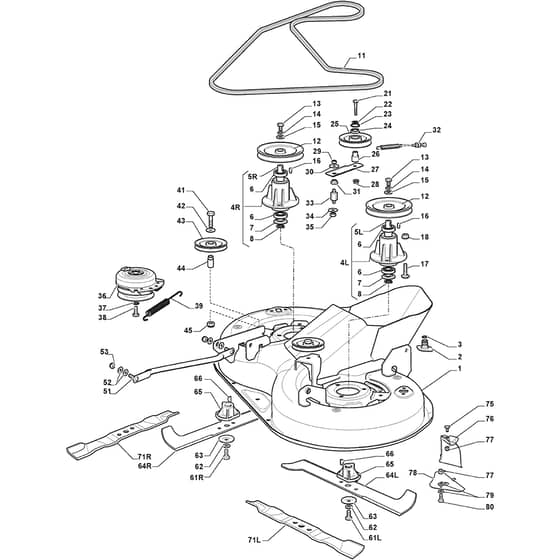

Castel Garden XDC 140 HDG Parts Diagram

Product Name - XDC 140 HDG

Model Year - 2015

Model Type - MPX 84 Hydro

Art.N - 2T2110473/14

Engine Model - Castelgarden 7500 AVS

	Part No.	Details
1	MO382564113/2 Available to backorder	Cutting Plate Black	£399.76 £333.13
2	MO325033086/0 In stock	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO382207205/1 In stock	Flange Assy Pos. 4R From 01-9-2015	£102.06 £85.05
4	MO382207204/1 In stock	Flange Assy Pos. 4L From 01-9-2015 To 31-8-2016	£102.06 £85.05
5	MO125020804/0 In stock	Blade Shaft Pos. 5L	£35.20 £29.33
5	MO125020805/0 In stock	Right Blade Shaft Pos. 5R	£35.20 £29.33
6	MO119216047/0 In stock	Bearing To 31-8-2014	£15.78 £13.15
7	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
8	MO112609260/0 In stock	Seeger	£1.84 £1.53
11	MO135061508/0LC In stock	Drive Belt	£56.96 £47.47
12	MO125601585/1 Available to backorder	Pulley	£43.63 £36.36
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
15	MO125670007/0 In stock	Washer	£1.97 £1.64
16	MO112139480/0 In stock	Feather	£1.70 £1.42
17	MO112818690/0 In stock	Screw	£1.55 £1.29
18	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
21	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
22	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
23	MO112610800/0 In stock	Seeger	£1.70 £1.42
24	MO119216048/0 In stock	Bearing From 01-9-2014	£18.31 £15.26
80	MO112790781/0 In stock	Hex-Head Screw M6 X 12	£1.55 £1.29
