XDC 140 HDG - 2015 - 2T2110473/14 - Castel Garden Ride On Mower Belt Protection Diagram

Description

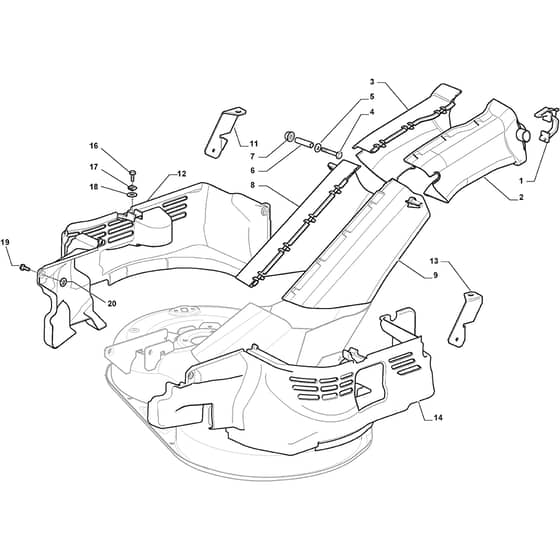

Castel Garden XDC 140 HDG Parts Diagram

Product Name - XDC 140 HDG

Model Year - 2015

Model Type - MPX 84 Hydro

Art.N - 2T2110473/14

Engine Model - Castelgarden 7500 AVS

	Part No.	Details
2	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
3	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
4	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
5	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
6	MO125160109/0 Available to backorder	Spacer	£1.70 £1.42
7	MO112292102/0 In stock	Nut	£1.70 £1.42
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO325108065/0 In stock	Conveyor	£18.43 £15.36
11	MO325774527/0 Available to backorder	Clamp	£3.25 £2.71
12	MO325060168/0 Available to backorder	Case	£39.42 £32.85
13	MO325774529/0 Available to backorder	Clamp	£3.66 £3.05
14	MO325060165/0 Available to backorder	Case	£35.20 £29.33
16	MO112789008/0 Available to backorder	Screw	£1.84 £1.53
17	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
18	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
20	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
