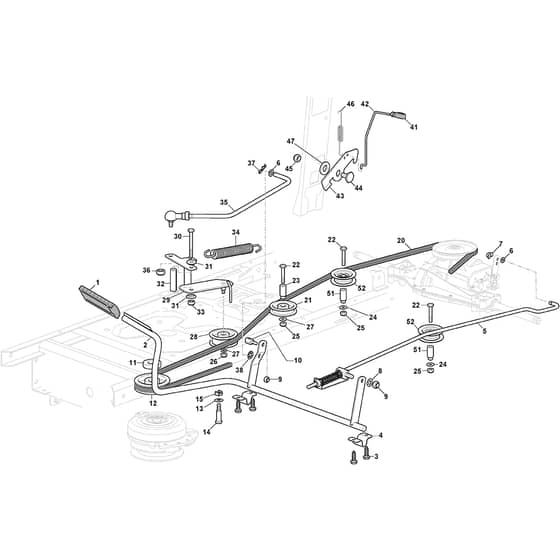

XDC 140 G - 2015-2019 - 2T2010473/15 - Castel Garden Ride On Mower Gearbox Controls Diagram

Name: XDC 140 G - 2015-2019 - 2T2010473/15 - Castel Garden Ride On Mower Gearbox Controls Diagram
SKU: xdc_140_g_2t2010473_15_gearbox_controls-group
Price: 1.29 GBP
Availability: InStock

Part No. xdc_140_g_2t2010473_15_gearbox_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 140 G - 2015-2019 - 2T2010473/15 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

Castel Garden XDC 140 G Parts Diagram

Product Name - XDC 140 G

Model Year - 2015-2019

Model Type - MPX 84

Art.N - 2T2010473/15

Engine Model - Castelgarden 7500 AVS

	Part No.	Details
1	MO325110391/0 Available to backorder	Clamp Cover	£6.77 £5.64
2	MO382500047/2 Available to backorder	Pedal	£53.50 £44.58
3	MO112735599/0 In stock	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate From S.N 20JA3RON000567 To S.N 23FA3RON000141	£4.37 £3.64
4	MO325547467/0 Available to backorder	Lifting Deck Axle Plate From S.N 23FA3RON000142	£5.06 £4.22
5	MO382000568/0 Available to backorder	Brake Control Rod Assy	£21.47 £17.89
6	MO112521350/0 In stock	Washer	£1.55 £1.29
52	MO125601612/0 In stock		£23.57 £19.64
