XDC 140 - 2022-2025 - 2T2010473/C22 - Castel Garden Ride On Mower Belt Protection Diagram

Name: XDC 140 - 2022-2025 - 2T2010473/C22 - Castel Garden Ride On Mower Belt Protection Diagram
SKU: xdc_140_2t2010473_c22_belt_protection-group
Price: 1.22 GBP
Availability: InStock

Part No. xdc_140_2t2010473_c22_belt_protection-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

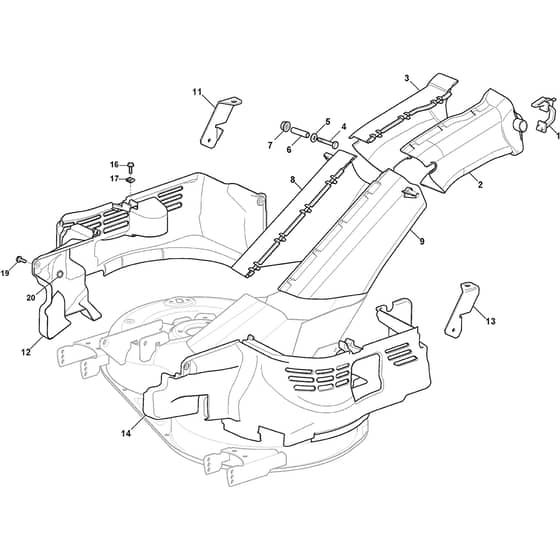

XDC 140 - 2022-2025 - 2T2010473/C22 - Castel Garden Ride On Mower Belt Protection Diagram

Description

Castel Garden XDC 140 Parts Diagram

Product Name - XDC 140

Model Year - 2022-2025

Model Type - MPX 84

Art.N - 2T2010473/C22

Engine Model - ST 350

	Part No.	Details
2	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
3	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
4	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
5	MO112521340/0 Available to backorder	Washer	£1.46 £1.22
6	MO125160109/0 Available to backorder	Spacer	£1.70 £1.42
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO325108065/0 In stock	Conveyor	£18.43 £15.36
11	MO325774527/0 Available to backorder	Clamp	£3.25 £2.71
12	MO325060168/0 Available to backorder	Case	£39.42 £32.85
13	MO325774529/0 Available to backorder	Clamp	£3.66 £3.05
14	MO325060169/0 Available to backorder	Case	£35.20 £29.33
16	MO125943010/0 In stock	Screw	£1.97 £1.64
17	MO112437506/0 Available to backorder	Plate	£2.53 £2.11
19	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
20	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
