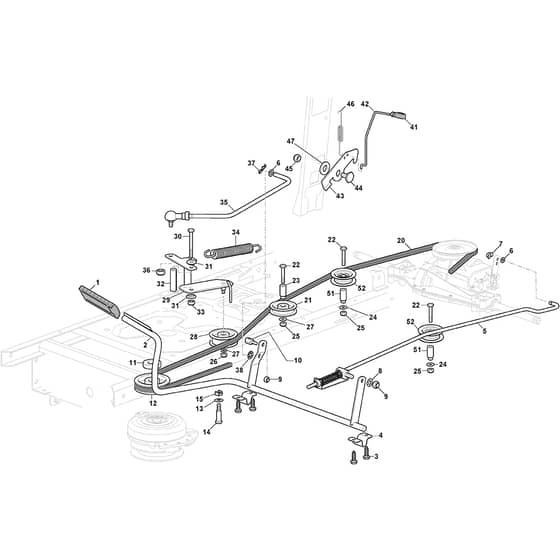

XDC 140 - 2012-2020 - 2T2010273/12 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

Castel Garden XDC 140 Parts Diagram

Product Name - XDC 140

Model Year - 2012-2020

Model Type - MPX 84

Art.N - 2T2010273/12

Engine Model - B&S 3130 AVS

	Part No.	Details
1	MO325110391/0 Available to backorder	Clamp Cover	£6.77 £5.64
2	MO382500047/2 Available to backorder	Pedal	£53.50 £44.58
3	MO112735599/0 In stock	Screw	£1.55 £1.29
4	MO325547467/0 Available to backorder	Lifting Deck Axle Plate From S.N 23FA3RON000142	£5.06 £4.22
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate From S.N 20JA3RON000567 To S.N 23FA3RON000141	£4.37 £3.64
5	MO382000568/0 Available to backorder	Brake Control Rod Assy	£21.47 £17.89
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO112436050/0 In stock	Plate	£1.84 £1.53
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin	£3.52 £2.93
11	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
12	MO125601567/0 Available to backorder	Pulley	£29.57 £24.64
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO125580030/0 Available to backorder	Belt Guide Peg	£4.50 £3.75
15	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
20	MO135062018/0LC In stock	Belt	£38.44 £32.03
21	MO125601613/1 In stock	Pulley Bearing hole ø15 (Plastic)	£16.99 £14.16
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer	£2.82 £2.35
28	MO125601554/0 In stock	Pulley	£25.66 £21.38
29	MO382318283/0 Available to backorder	Lever To S.N 24CA3RON005251	£18.48 £15.40
29	MO382318283/1 Available to backorder	Lever From S.N 24CA3RON005252	£19.42 £16.18
30	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
31	MO125038021/0 Available to backorder	Bushing	£1.33 £1.11
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
35	MO382820016/1 Available to backorder	Tie Rod	£16.75 £13.96
36	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
38	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
41	MO125394509/1 In stock	Knob	£2.53 £2.11
42	MO125033113/0 Available to backorder	Rod	£3.52 £2.93
43	MO325253011/1 Available to backorder	Hook	£3.66 £3.05
44	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
45	MO112155000/0 In stock	Nut	£1.55 £1.29
46	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
47	MO112523060/0 In stock	Washer	£1.55 £1.29
51	MO125160111/0 Available to backorder	Spacer	£4.24 £3.53
52	MO125601612/0 In stock	Pulley (Steel)	£23.57 £19.64
