XDC 140 - 2012-2020 - 2T2010273/12 - Castel Garden Ride On Mower Deck Lifting Diagram

Description

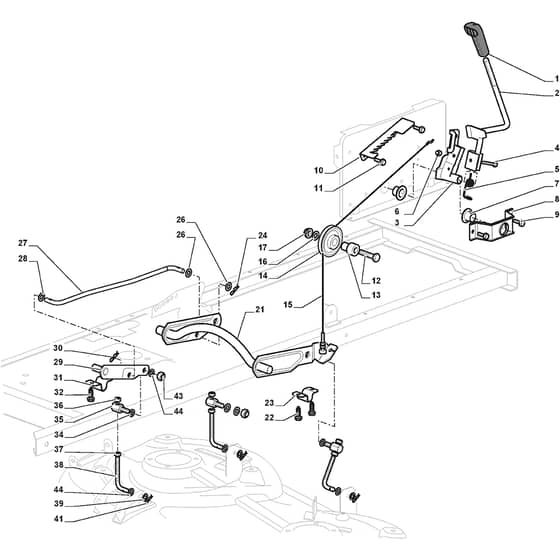

Castel Garden XDC 140 Parts Diagram

Product Name - XDC 140

Model Year - 2012-2020

Model Type - MPX 84

Art.N - 2T2010273/12

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318255/0 Available to backorder	Lever	£13.93 £11.61
3	MO382318231/1 Available to backorder	Lifting Axle Assy From S.N 20JA3RON003035	£7.03 £5.86
4	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
5	MO125430261/0 Available to backorder	Spring	£1.40 £1.17
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.20 £5.17
10	MO325735515/0 Available to backorder	Steering Sector	£8.02 £6.68
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 Available to backorder	Pulley	£2.81 £2.34
15	MO382004620/0 In stock	Deck Lifting Wire	£14.86 £12.38
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.69 £1.41
21	MO382318297/1 Available to backorder	Axle From S.N 19FA3RON000413	£30.97 £25.81
27	MO125033109/0 In stock	Connecting Rod	£9.43 £7.86
28	MO325670010/1 Available to backorder	Antifriction Washer	£1.33 £1.11
29	MO382318293/1 Available to backorder	Axle From S.N 19FA3RON000061	£12.38 £10.32
30	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
31	MO325547231/1 Available to backorder	Lifting Deck Axle Plate From S.N 20JA3RON000567	£4.37 £3.64
32	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
35	MO125510107/1 Available to backorder	Pin To S.N 19KA3RON005043	£5.21 £4.34
35	MO125510170/0 Available to backorder	Pin From S.N 19EA3RON001208	£5.35 £4.46
37	MO112295200/0 In stock	Nut	£1.40 £1.17
38	MO125840012/1 Available to backorder	Tie Rod From S.N 20BA3RON003001	£14.35 £11.96
39	MO325670008/1 In stock	Washer	£1.55 £1.29
41	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
43	MO112156602/0 In stock	Nut	£1.40 £1.17
44	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.55 £1.29
