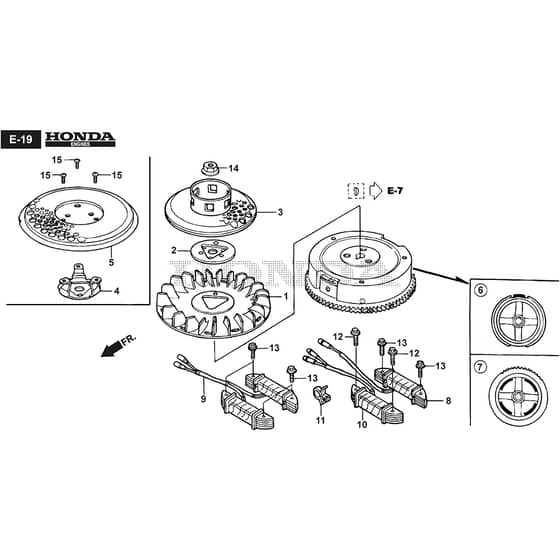

XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Flywheel Diagram

Part No. xdc_135_hd_2t2000373_12_flywheel-group
XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Flywheel Diagram
XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Flywheel Diagram

Description

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390

Ref. Img. Part No. Details
  1 Fan. Cooling
Fan. Cooling
HP19511-ZE9-010
Available to backorder
Fan. Cooling
£44.42 £37.02

  7 Flywheel Comp. (Sel-4Pole)
Flywheel Comp. (Sel-4Pole)
HP31110-ZF5-L32
Available to backorder
Flywheel Comp. (Sel-4Pole)
£286.56 £238.80

  9 Coil Assy. Charge (10A)
Coil Assy. Charge (10A)
HP31630-ZF5-V01
Available to backorder
Coil Assy. Charge (10A)
£243.84 £203.20

  14 Nut. Special. 16mm
Nut. Special. 16mm
HP90201-ZE3-V00
Available to backorder
Nut. Special. 16mm
£7.44 £6.20


Description

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390
