XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Engine Diagram

Name: XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Engine Diagram
SKU: xdc_135_hd_2t2000373_12_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Engine Diagram

Description

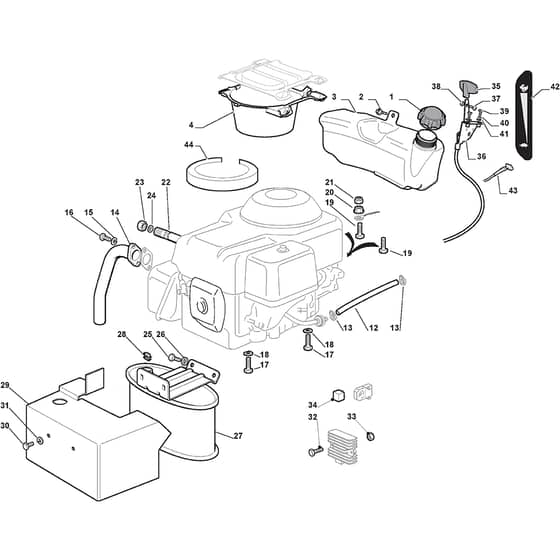

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO125943010/0 In stock	Screw	£1.97 £1.64
3	MO325735126/1 Available to backorder	Fuel Tank	£46.46 £38.72
4	MO325108044/1 Available to backorder	Conveyor	£11.12 £9.27
12	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
13	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
14	MO118738204/0 Available to backorder	Exhaust Pipe	£148.43 £123.69
16	MO112793102/0 Available to backorder	Screw	£1.55 £1.29
17	MO112735802/0 Available to backorder	Screw	£3.26 £2.72
19	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
20	MO112154210/0 In stock	Nut	£1.69 £1.41
21	MO112155000/0 In stock	Nut	£1.55 £1.29
22	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.17 £6.81
23	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
24	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
25	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
26	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
27	MO182750010/0 Available to backorder	Muffler	£123.89 £103.24
28	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
29	MO382598003/1 Available to backorder	Muffler Protection To 31-8-2013	£52.08 £43.40
30	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
31	MO112583500/0 In stock	Grower	£1.55 £1.29
32	MO112791213/1 In stock	Screw	£1.55 £1.29
33	MO112154510/0 In stock	Nut	£1.55 £1.29
34	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
35	MO325394531/0 Available to backorder	Knob	£1.82 £1.52
36	MO182000215/0 In stock	Accelerator From 01-9-2014	£19.85 £16.54
36	MO184000251/1 Available to backorder	Accelerator To 31-8-2014	£26.69 £22.24
38	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
39	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
40	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
41	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
42	MO114363697/0 Available to backorder	Throttle Label	£1.55 £1.29
43	MO125090003/0 In stock	Choke Control	£19.99 £16.66
