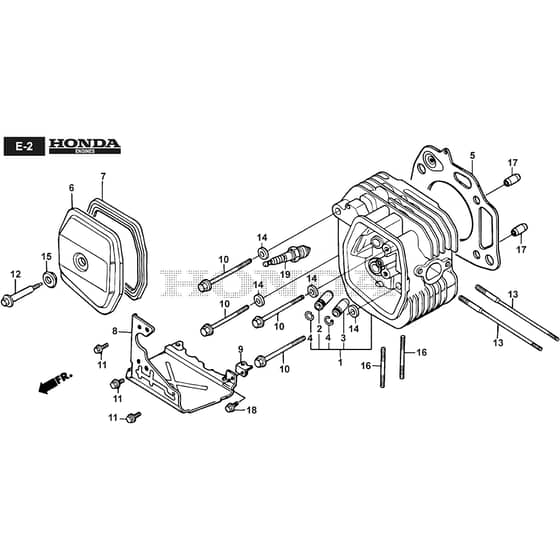

XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Cylinder Head Diagram

Name: XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Cylinder Head Diagram
SKU: xdc_135_hd_2t2000373_12_cylinder_head-group
Price: 1.82 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Cylinder Head Diagram

Description

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12200-Z1E-405 Available to backorder	Head Comp. Cylinder	£344.76 £287.30
2	HP12204-ZE2-306 Available to backorder	Guide. In. Valve (O.S.)	Was £15.02 £12.52 Special Price £12.90 £10.75
3	HP12205-ZE2-305 Available to backorder	Guide. Ex. Valve (O.S.)	£15.02 £12.52
4	HP12216-ZE2-300 Available to backorder	Clip. Valve Guide	£3.70 £3.08
5	HP12251-ZF5-H03 Available to backorder	Gasket. Cylinder Head	£20.32 £16.93
7	HP12391-ZE8-000 In stock	Packing. Head Cover	£15.54 £12.95
12	HP90014-ZE8-000 Available to backorder	Bolt. Head Cover	£7.31 £6.09
15	HP90441-ZE2-010 Available to backorder	Washer Comp. Head Cover	£6.29 £5.24
16	HP92900-080320B Available to backorder	Bolt. Stud. 8X32	£2.18 £1.82
17	HP94301-12200 Available to backorder	Dowel Pin. 12X20	£2.93 £2.44
19	2135 In stock	Spark Plug (Bpr5Es-Ngk)	£2.30 £1.92
