XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Controls Diagram

Name: XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Controls Diagram
SKU: xdc_135_hd_2t2000373_12_controls-group
Price: 0.82 GBP
Availability: InStock

Part No. xdc_135_hd_2t2000373_12_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Controls Diagram

Description

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390

	Part No.	Details

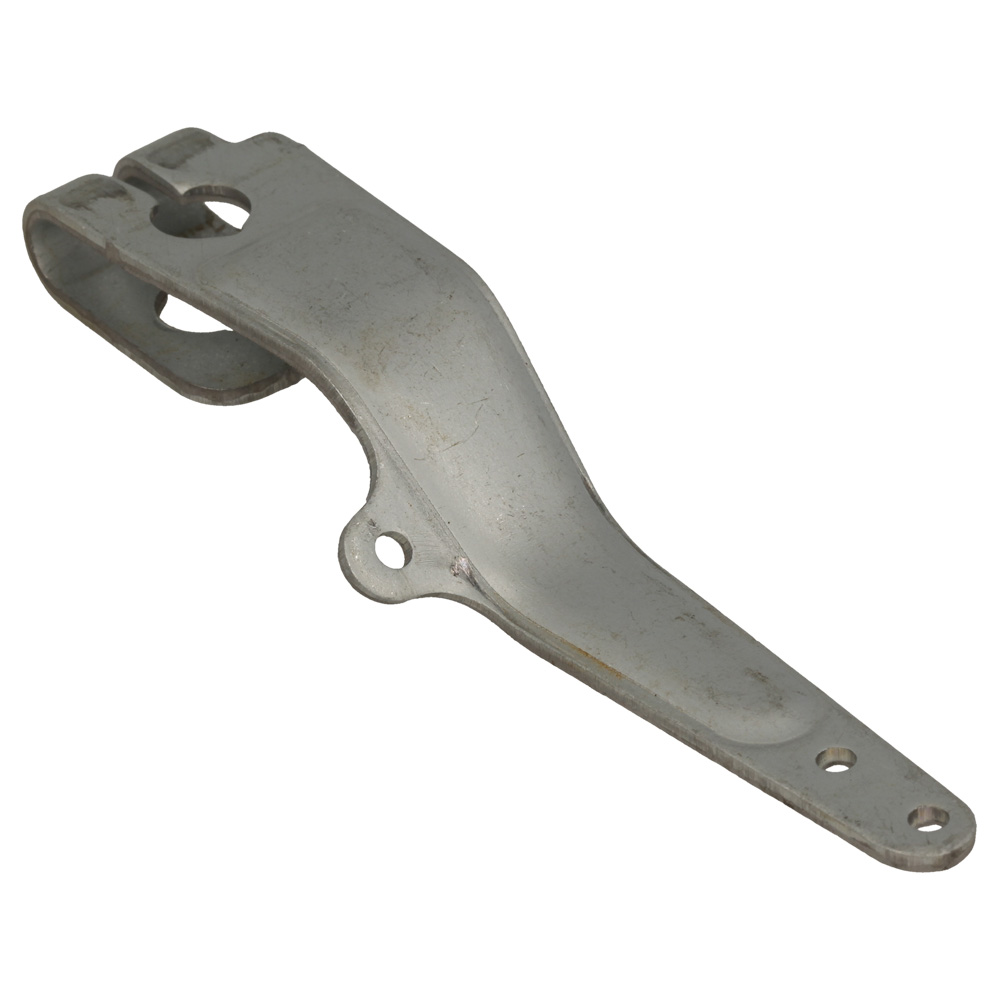

3	HP16551-ZF5-000 Available to backorder	Arm. Governor	£16.36 £13.63

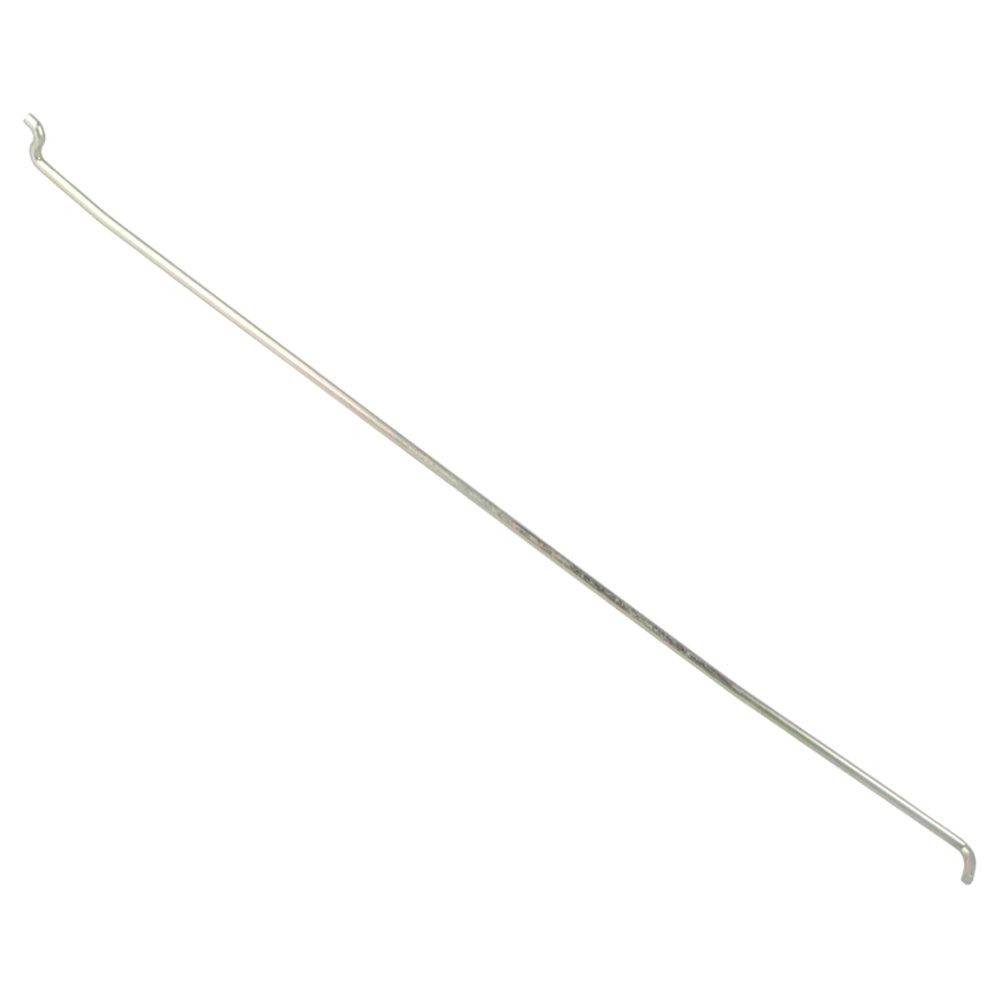

4	HP16555-ZE9-000 Available to backorder	Rod. Governor	£5.93 £4.94
5	HP16556-ZE9-000 Available to backorder	Rod. Choke	£3.89 £3.24

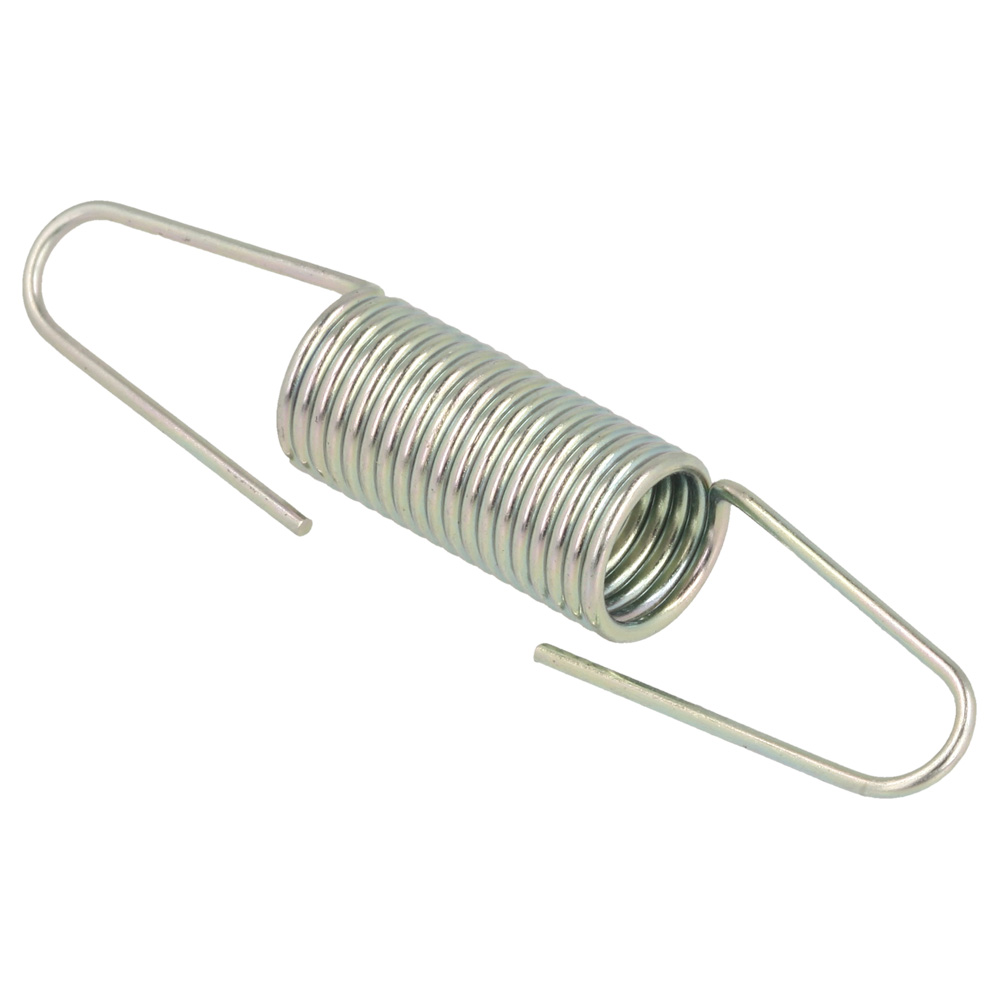

7	HP16561-ZF5-000 Available to backorder	Spring. Governor	£5.05 £4.21
8	HP16563-ZE8-000 Available to backorder	Spring. Governor Primary	£2.05 £1.71
10	HP16576-891-000 Available to backorder	Holder. Cable	£3.89 £3.24
11	HP16584-883-300 Available to backorder	Spring. Control Adjusting	£4.80 £4.00
12	HP16592-732-700 Available to backorder	Spring. Cable Return	£4.26 £3.55
13	HP16599-ZG1-M10 Available to backorder	Collar. Stopper	£2.62 £2.18
14	HP16619-ZF5-000 Available to backorder	Lever. Choke Joint	£8.77 £7.31
15	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
16	HP90015-Z5T-000 Available to backorder	Bolt. Governor Arm	£2.58 £2.15
17	HP90015-ZE8-000 Available to backorder	Bolt. Flange. 6mm	£3.24 £2.70
21	HP94050-06000 In stock	Nut. Flange. 6mm	£3.37 £2.81
22	MO118552273/0 Available to backorder	Plain Washer 6mm	£0.98 £0.82
