XDC 135 HD - 2012-2017 - 2T2000373/12 - Castel Garden Ride On Mower Camshaft Diagram

Description

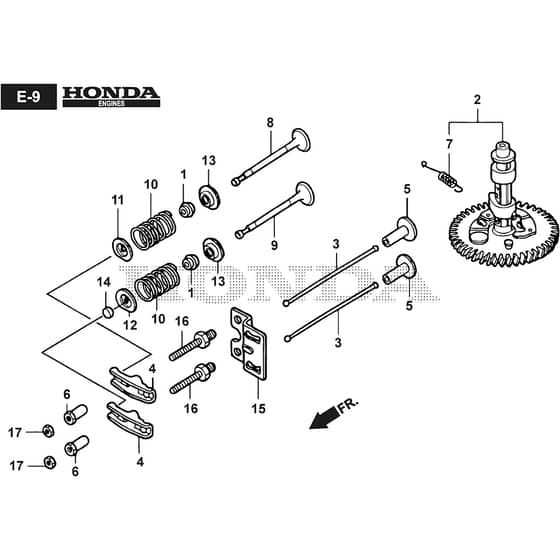

Castel Garden XDC 135 HD Parts Diagram

Product Name - XDC 135 HD

Model Year - 2012-2017

Model Type - MPX 84 Hydro

Art.N - 2T2000373/12

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12209-ZE8-003 Available to backorder	Seal. Valve Stem	£9.35 £7.79
3	HP14410-Z1C-000 Available to backorder	Rod. Push	£12.76 £10.63
4	HP14431-ZE2-010 Available to backorder	Arm. Valve Rocker	£12.58 £10.48
5	HP14441-ZE2-000 Available to backorder	Lifter. Valve	£23.14 £19.28

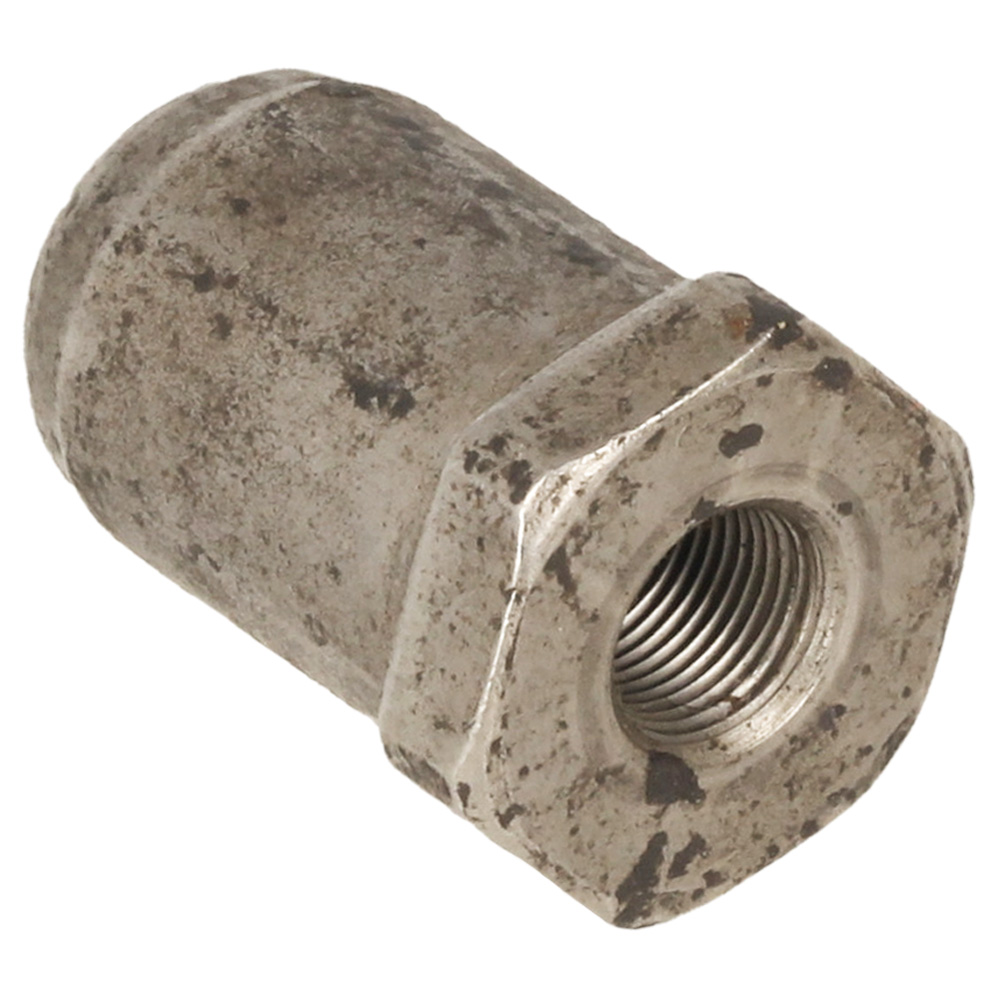

6	HP14451-Z4M-000 Available to backorder	Pivot. Rocker Arm	£6.12 £5.10
7	HP14568-ZE1-000 Available to backorder	Spring. Weight Return	£2.23 £1.86
8	HP14711-ZE3-000 Available to backorder	Valve. In.	£27.34 £22.78
9	HP14721-ZE3-000 Available to backorder	Valve. Ex.	£47.21 £39.34
10	HP14751-Z1C-000 Available to backorder	Spring. Valve	£6.43 £5.36

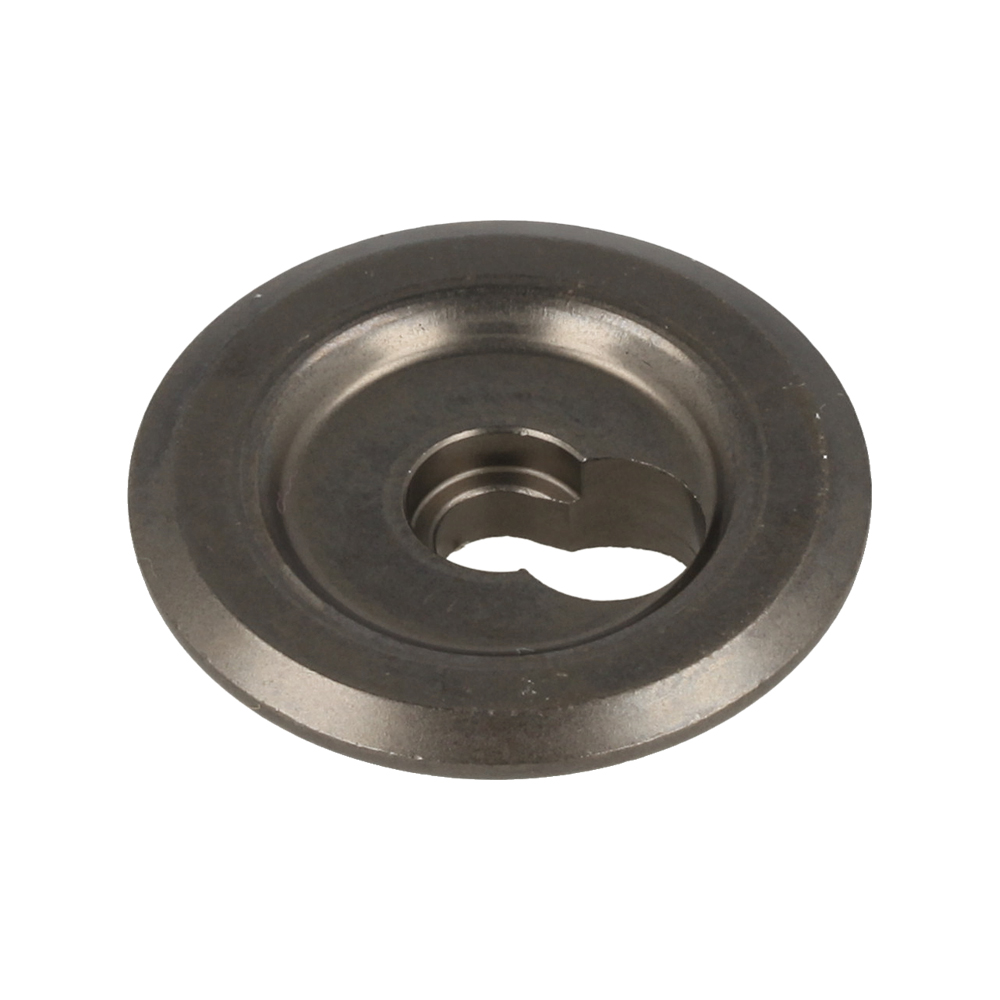

11	HP14771-Z8S-000 Available to backorder	Retainer. In. Valve Spring	£2.63 £2.19
12	HP14773-Z8S-000 Available to backorder	Retainer. Ex. Valve Spring	£2.63 £2.19
13	HP14775-ZE2-010 Available to backorder	Seat. Valve Spring	£4.81 £4.01
14	HP14781-ZE2-000 Available to backorder	Rotator. Valve	£6.19 £5.16
15	HP14791-ZE9-010 Available to backorder	Guide. Push Rod	£7.21 £6.01
16	HP90012-ZE0-010 Available to backorder	Bolt. Pivot. 8mm	£9.29 £7.74
17	MO118552232/0 Available to backorder	Pivot Adjusting Nut	£2.51 £2.09
