XDC 135 - 2020 - 2T2000473/C20 - Castel Garden Ride On Mower Steering Diagram

Name: XDC 135 - 2020 - 2T2000473/C20 - Castel Garden Ride On Mower Steering Diagram
SKU: xdc_135_2t2000473_c20_steering-group
Price: 1.16 GBP
Availability: InStock

Part No. xdc_135_2t2000473_c20_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XDC 135 - 2020 - 2T2000473/C20 - Castel Garden Ride On Mower Steering Diagram

Description

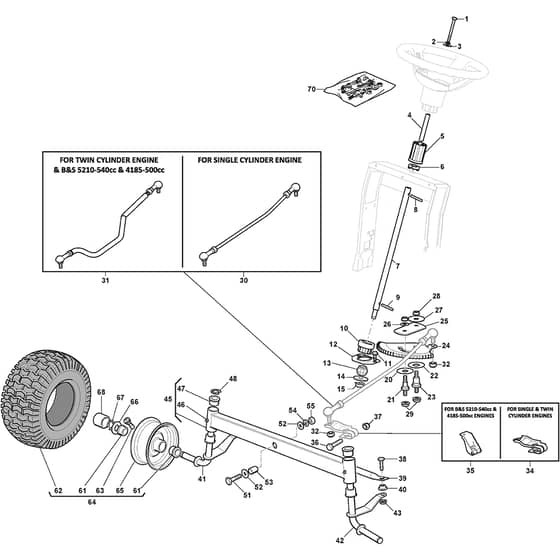

Castel Garden XDC 135 Parts Diagram

Product Name - XDC 135

Model Year - 2020

Model Type - MPX 84

Art.N - 2T2000473/C20

Engine Model - Castelgarden 7050

	Part No.	Details
1	MO112692050/0 In stock	Screw	£1.84 £1.53
2	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
3	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
4	MO125160047/0 Available to backorder	Spacer	£3.10 £2.58
5	MO325785318/0 Available to backorder	Support	£8.45 £7.04
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520007/0 Available to backorder	Steering Column	£19.70 £16.42
8	MO112620300/0 In stock	Spring Pin 6X50	£1.84 £1.53
9	MO112622650/0 Available to backorder	Dowel Pin	£1.79 £1.49
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943051/0 Available to backorder	Screw	£1.84 £1.53
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.69 £2.24
14	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
15	MO112436030/0 In stock	Plate	£1.84 £1.53
20	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
21	MO125510173/0 Available to backorder	Pin	£1.97 £1.64
22	MO125670023/0 In stock	Washer	£1.84 £1.53
23	MO125510165/0 In stock	Pin	£4.78 £3.98
24	MO325735519/0 In stock	Steering Sector	£35.20 £29.33
25	MO325547233/0 Available to backorder	Plate	£3.52 £2.93
26	MO112369500/0 In stock	Elastic Washer	£1.39 £1.16
27	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
28	MO112155010/0 In stock	Nut	£2.11 £1.76
30	MO382000566/2 In stock	Steering Wheels Rod Assy For Single Cylinder Engine	£36.56 £30.47
32	MO112156602/0 In stock	Nut	£1.39 £1.16
34	MO382318323/0 In stock	Steering Control Lever For Single and Twin Cilynder Engines	£7.62 £6.35
36	MO112692395/2 In stock	Screw	£3.25 £2.71
70	MO382180142/0 Available to backorder	Steering Wheel Assembly Pack	£4.08 £3.40
