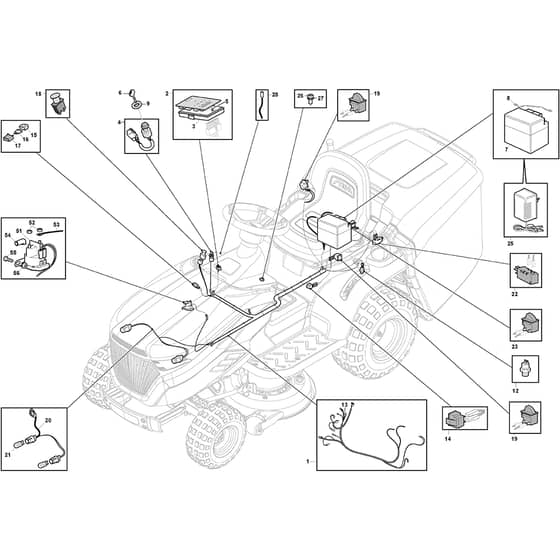

XDC 135 - 2020 - 2T2000473/C20 - Castel Garden Ride On Mower Electric Parts Diagram

Description

Castel Garden XDC 135 Parts Diagram

Product Name - XDC 135

Model Year - 2020

Model Type - MPX 84

Art.N - 2T2000473/C20

Engine Model - Castelgarden 7050

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182040198/3 Available to backorder	Complete Wiring Assembly	£120.95 £100.79
2	MO382722472/1 In stock	Electronic Card "LS" marked	£62.08 £51.73
3	MO325600090/1 Available to backorder	Card Protection	£4.66 £3.88
4	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
5	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
6	MO118210023/0 In stock	Starting Key	£7.03 £5.86
7	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
8	MO125430265/1 Available to backorder	Spring	£1.82 £1.52
9	MO118400863/0 Available to backorder	Screwed Ring	£1.69 £1.41
12	MO119410608/1 Available to backorder	Neutral Switch (Mech.)	£61.74 £51.45
13	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
14	MO119410623/0 Available to backorder	Microswitch N.C. - White	£7.62 £6.35
15	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
16	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
16	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
17	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
18	MO118450073/0 In stock	Clutch Switch Red	£14.92 £12.43
19	MO119410622/1 In stock	Microswitch N.O. - Black	£6.62 £5.52
20	MO182040186/0 Available to backorder	Lamp Holder Cable For Lamp Version	£10.91 £9.09
21	MO118459100/0 Available to backorder	Lamp For Lights Headlight Bulb	£2.12 £1.77
22	MO119410605/1 In stock	Microswitch	£39.42 £32.85
23	MO119410633/0 Available to backorder	Seat Microswitch N.O. - Black.White	£6.26 £5.22
25	MO1134-9250-01 In stock	Battery Charger 12V 1A - Ce Plugg EU plug	£60.06 £50.05
26	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
27	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
28	MO182040174/0 Available to backorder	Lamp Holder Cable Assy LED cable for alarm on dashboard	£5.48 £4.57
51	MO118736112/0 In stock	Solenoid	£38.00 £31.67
52	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
53	MO125065002/0 Available to backorder	Cable	£10.49 £8.74
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO112790781/0 In stock	Screw	£1.55 £1.29
56	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
