XD 150 - 2022 - 2T0510473/C22 - Castel Garden Ride On Mower Mechanical Transmission Diagram

Name: XD 150 - 2022 - 2T0510473/C22 - Castel Garden Ride On Mower Mechanical Transmission Diagram
SKU: xd_150_2t0510473_c22_mechanical_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XD 150 - 2022 - 2T0510473/C22 - Castel Garden Ride On Mower Mechanical Transmission Diagram

Description

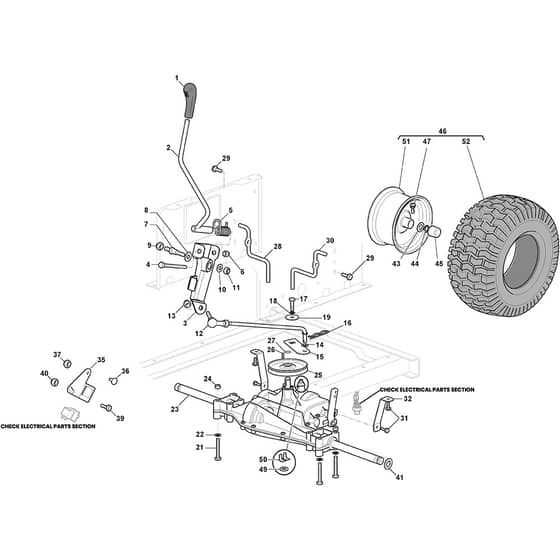

Castel Garden XD 150 Parts Diagram

Product Name - XD 150

Model Year - 2022

Model Type - SDX 98

Art.N - 2T0510473/C22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394532/0 Available to backorder	Knob	£5.21 £4.34
2	MO382318233/0 Available to backorder	Lever	£18.59 £15.49
3	MO382774259/1 Available to backorder	Clamp	£13.37 £11.14
4	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
5	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
7	MO125510035/0 In stock	Pin	£3.67 £3.06
8	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
9	MO112293201/0 In stock	Nut	£1.69 £1.41
10	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
11	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
12	MO382000567/1 Available to backorder	Gear Connection Rod Assy	£25.80 £21.50
13	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
14	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
15	MO325318235/0 Available to backorder	Lever	£2.53 £2.11
16	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
17	MO112791011/0 Available to backorder	Screw for LANGHUI Transmission	£1.40 £1.17
17	MO112735520/0 Available to backorder	Screw for PEERLESS Transmission	£1.55 £1.29
18	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
19	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
21	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
22	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
23	MO118400910/4 Available to backorder	Mechanical Transaxle - Peerless (Mst-205-591E) PEERLESS Transmission	£509.23 £424.36
23	MO118400922/1 Available to backorder	Mechanical Transaxle - Langhui (630030) LANGHUI Transmission From S.N 23CA3RON003336	£1,405.63 £1,171.36
25	MO182601509/0 Available to backorder	Pulley	£76.72 £63.93
26	MO112139430/0 In stock	Key	£1.97 £1.64
27	MO112608950/0 Available to backorder	Seeger	£1.55 £1.29
28	MO125270329/0 Available to backorder	Belt Guide	£4.37 £3.64
29	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
30	MO125270330/0 Available to backorder	Belt Guide	£4.37 £3.64
31	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
32	MO325785315/0 Available to backorder	Support	£5.64 £4.70
35	MO325785483/1 Available to backorder	Support	£4.37 £3.64
36	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
39	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
40	MO112155000/0 In stock	Nut	£1.55 £1.29
43	MO125670005/2 In stock	Washer	£4.08 £3.40
44	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
45	MO322110233/0 In stock	Hub Cover	£1.70 £1.42
46	MO382680104/0 Available to backorder	Wheel Assy	£160.28 £133.57
47	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
49	MO112540221/0 Available to backorder	Washer	£4.66 £3.88
50	MO133800001/0 Available to backorder	Faston Terminal	£1.40 £1.17
51	MO182001509/1 Available to backorder	Rear Wheel Rimm	£82.61 £68.84
52	MO125590023/0 Available to backorder	Tyre 18 X 8.50-8 [Wanda] Pr4 P512	£103.10 £85.92
