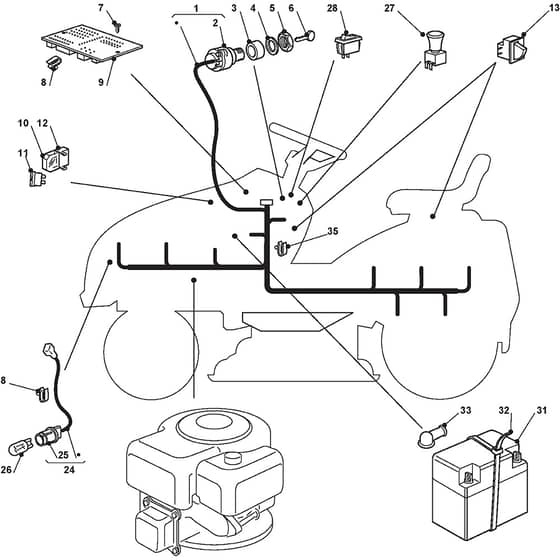

XD 150 - 2009 - 2T4244673/GI - Castel Garden Ride On Mower Electrical Parts Diagram

Description

Castel Garden XD 150 Parts Diagram

Product Name - XD 150

Model Year - 2009

Model Type - NJX 98 S

Art.N - 2T4244673/GI

Engine Model -

	Part No.	Details
1	MO182040145/0 Available to backorder	Wiring Harness	£175.97 £146.64
2	MO118450072/0 In stock	Starting Switch	£30.96 £25.80
3	MO118550136/0 Available to backorder	Spacer	£1.63 £1.36
4	MO118550135/0 Available to backorder	Washer	£1.97 £1.64
5	MO118400862/0 Available to backorder	Threaded Ring Nut	£5.22 £4.35
6	MO118210022/0 In stock	Starting Key	£10.14 £8.45
7	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
9	MO125722432/0 Available to backorder	Electronic Card	£169.74 £141.45
10	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
11	MO133340040/0 Available to backorder	Fuse 10 A	£2.24 £1.87
11	MO133340036/0 Available to backorder	Fuse 25 A	£1.70 £1.42
12	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
13	MO119410622/1 In stock	Microswitch	£6.64 £5.53
24	MO182040073/0 Available to backorder	Lamp Holder Harness	£10.91 £9.09
25	MO133500030/0 Available to backorder	Lamp Holder	£3.79 £3.16
26	MO118459100/0 Available to backorder	Lamp For Lights	£2.22 £1.85
27	MO118450068/1 Available to backorder	Switch	£51.55 £42.96
28	MO118450084/0 Available to backorder	Headlight Switch	£4.50 £3.75
31	MO118120068/0 In stock	Battery 12V 18Ah	£113.47 £94.56
33	MO118564861/2 In stock	Protection	£6.77 £5.64
35	MO133320506/0 Available to backorder	Cable Clip	£1.39 £1.16
