XD 150 - 2009 - 2T3244673/F9 - Castel Garden Ride On Mower Engine Diagram

Name: XD 150 - 2009 - 2T3244673/F9 - Castel Garden Ride On Mower Engine Diagram
SKU: xd_150_2t3244673_f9_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XD 150 - 2009 - 2T3244673/F9 - Castel Garden Ride On Mower Engine Diagram

Description

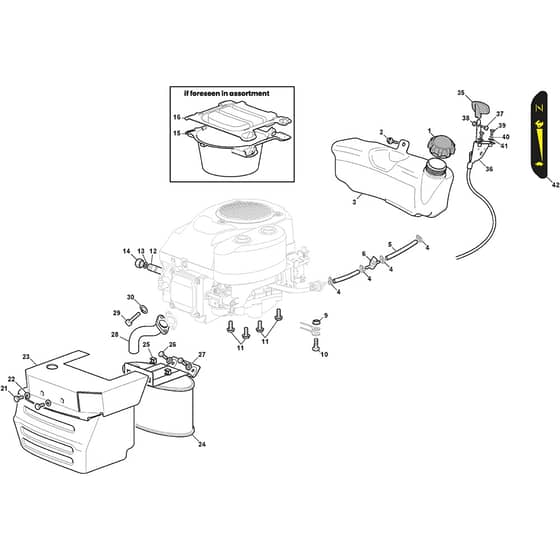

Castel Garden XD 150 Parts Diagram

Product Name - XD 150

Model Year - 2009

Model Type - SD 98

Art.N - 2T3244673/F9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
3	MO325735126/1 Available to backorder	Tank From S.N DD305062	£46.46 £38.72
4	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
4	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.82 £1.52
5	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
6	MO118566119/0 Available to backorder	Shut Out Valve From S.N 21GA3RON003919	£14.64 £12.20
9	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
10	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
11	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
12	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.17 £6.81
13	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
14	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
15	MO325108044/1 Available to backorder	Conveyor if foreseen in assortment	£11.12 £9.27
16	MO325263318/0 Available to backorder	Air Intake Grill if foreseen in assortment From S.N 21GA3RON001381	£12.82 £10.68
16	MO325263302/1 Available to backorder	Air Intake Grill if foreseen in assortment To S.N 21FA3RON003869	£15.91 £13.26
23	MO382598045/1 Available to backorder	Muffler Protection From S.N 19GA3RON000516 To S.N 22LA3RON004030	£55.52 £46.27
23	MO382598045/2 Available to backorder	Muffler Protection From S.N 22LA3RON004031	£54.10 £45.08
23	MO382598045/0 Available to backorder	Muffler Protection To S.N 19GA3RON000515	£48.37 £40.31
24	MO182750010/0 Available to backorder	Muffler To S.N 23KA3RON004241	£123.89 £103.24
24	MO182750018/0 Available to backorder	Muffler Assy From S.N 23KA3RON004242	£67.57 £56.31
25	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
26	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
28	MO118738231/2 Available to backorder	Exhaust Connection Tube From S.N 22KA3RON013348	£21.30 £17.75
29	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
30	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
35	MO325394531/0 Available to backorder	Knob	£1.82 £1.52
36	MO182000215/0 In stock	Accelerator	£19.85 £16.54
38	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
39	MO112726389/0 Available to backorder	Screw Black Galvanized	£1.49 £1.24
39	MO112726388/0 Available to backorder	Screw White Galvanized	£1.55 £1.29
40	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
41	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
42	MO114363697/0 Available to backorder	Throttle Decal	£1.55 £1.29
