XD 140 - 2008 - 299958376/08 - Castel Garden Ride On Mower Seat Diagram

Name: XD 140 - 2008 - 299958376/08 - Castel Garden Ride On Mower Seat Diagram
SKU: xd_140_299958376_08_seat-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XD 140 - 2008 - 299958376/08 - Castel Garden Ride On Mower Seat Diagram

Description

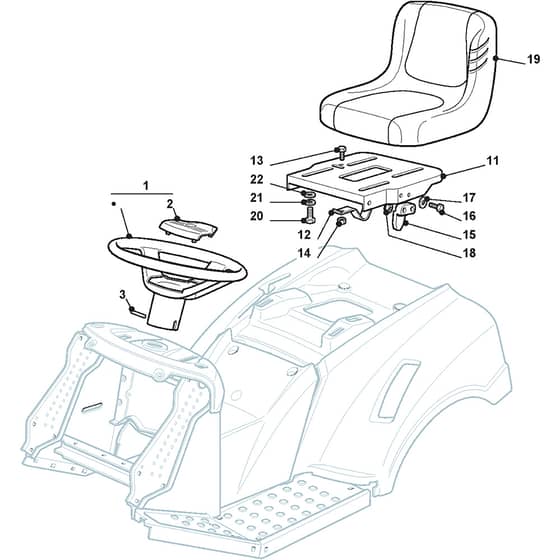

Castel Garden XD 140 Parts Diagram

Product Name - XD 140

Model Year - 2008

Model Type - NJX 98 S

Art.N - 299958376/08

Engine Model - CASTELGARDEN 13,5 HP

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580500/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
11	MO325547033/1 Available to backorder	Seat Plate	£33.02 £27.52
12	MO125430223/2 Available to backorder	Spring	£6.20 £5.17
13	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
18	MO112154330/0 In stock	Nut	£1.55 £1.29
19	MO125722463/0 Available to backorder	Seat	£204.12 £170.10
20	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer M8 8.4 X 24 X 2	£1.55 £1.29
