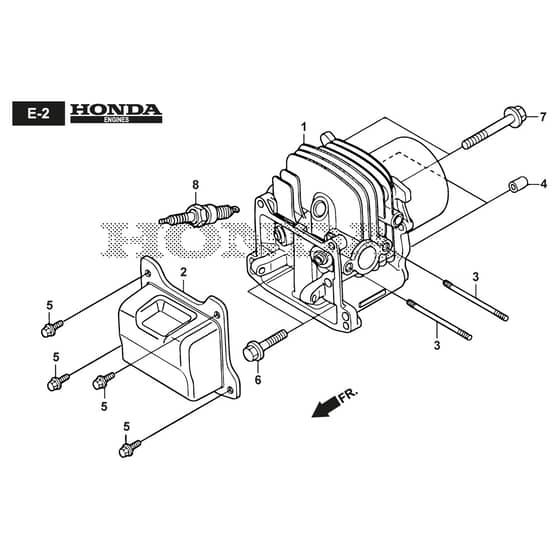

XC 53 HSW - 2020-2021 - 295546833/C20 - Castel Garden Rotary Mower Cylinder Head Diagram

Name: XC 53 HSW - 2020-2021 - 295546833/C20 - Castel Garden Rotary Mower Cylinder Head Diagram
SKU: xc_53_hsw_295546833_c20_cylinder_head-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 53 HSW - 2020-2021 - 295546833/C20 - Castel Garden Rotary Mower Cylinder Head Diagram

Description

Castel Garden XC 53 HSW Parts Diagram

Product Name - XC 53 HSW

Model Year - 2020-2021

Model Type - CSC 534 WSQ

Art.N - 295546833/C20

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12100-Z9L-405 Available to backorder	Cylinder Comp.	£264.48 £220.40
2	HP12311-Z9L-000 In stock	Cover. Head	£39.30 £32.75
3	HP90043-Z9L-000 Available to backorder	Bolt. Stud. 6X82 (Ct200)	£6.36 £5.30
4	HP94301-08140 Available to backorder	Dowel Pin. 8X14	£3.04 £2.53
5	HP95701-0601408 Available to backorder	Bolt. Flange. 6X14	£0.90 £0.75
6	HP95701-0802508 Available to backorder	Bolt. Flange. 8X25	£2.00 £1.67
7	HP95701-0804008 Available to backorder	Bolt. Flange. 8X40	£2.00 £1.67
8	2135 In stock	Plug. Spark (Bpr5Es) (Ngk)	£2.30 £1.92
