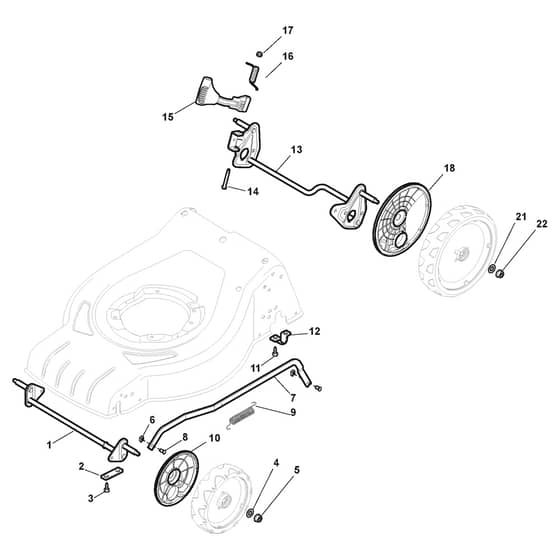

XC 53 HSW - 2019 - 295546833/C19 - Castel Garden Rotary Mower Height Adjusting Diagram

Name: XC 53 HSW - 2019 - 295546833/C19 - Castel Garden Rotary Mower Height Adjusting Diagram
SKU: xc_53_hsw_295546833_c19_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. xc_53_hsw_295546833_c19_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 53 HSW - 2019 - 295546833/C19 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

Castel Garden XC 53 HSW Parts Diagram

Product Name - XC 53 HSW

Model Year - 2019

Model Type - CSC 534 WSQ

Art.N - 295546833/C19

Engine Model -

	Part No.	Details
1	MO381302853/1 In stock	Front Wheel Axle From S.N 20BA2WBH074119	£32.38 £26.98
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO322869679/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070882	£25.36 £21.13
7	MO322869679/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH074119	£25.36 £21.13
8	MO122519823/0 In stock	Pin	£2.24 £1.87
9	MO122446193/0 In stock	Spring	£4.78 £3.98
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.70 £1.42
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302849/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH051136	£50.69 £42.24
14	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
15	MO381003458/1 Available to backorder	Wheels Rear Adj. Lever with Standard Black Knob From S.N 20BA2WBH073719	£10.85 £9.04
15	MO381003459/1 Available to backorder	Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719	£13.44 £11.20
15	MO381003459/0 Available to backorder	Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718	£13.44 £11.20
16	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO322600240/0 Available to backorder	Protection. Wheel	£5.34 £4.45
